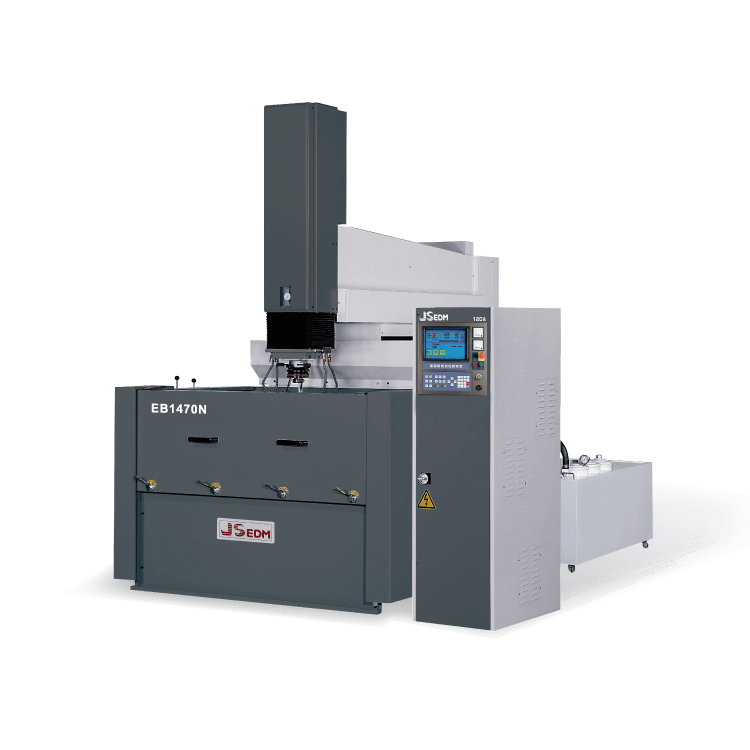

JSEDM EB1470N ZNC Electric Discharge Machine (600; 800 mm3/min)

Capacity of work tank: 2250x1350x620mm

Work table size: 1850x1000mm

Longitudinal travel(X-axis): 1400mm

Cross travel(Y-axis): 700mm

Z axis travel(Z-axis+W-axis): 500mm

Distance between platen to table: 550~1050mm

Max. Electrode weight: 450kgs

Max. Work piece weight: 6000kgs

Fluid tank capacity: 2100L

Machine outside dimensions(WxDxH): 4300x3400x3250mm

Machine weight: 8000kgs

Max. Machining current: 90A; 120A(Optional)

Max. Power input: 10KVA; 13KVA

Max. Machining rate: 600; 800 mm3/min

Min. Electrode wear ratio: 0.15%

Best surface / Ra: Ra 0.2μm

Min. D. R. O. resolution(mm): 0.005mm
