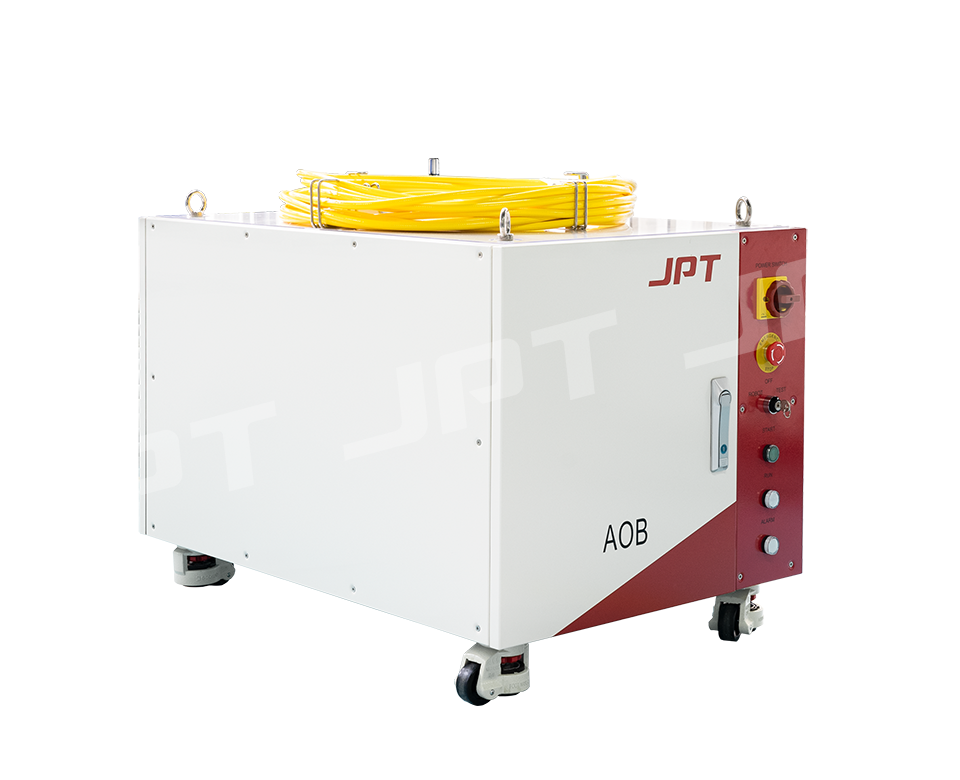

JPT AOB 2000W CW Fiber Laser (2000W, 1080±10nm)

Average output power (central beam): 2000W

Average output power (annular beam): 2000W

Average output power (total): 4000W

Beam parameter product (central beam) (mm*mrad): ≤1.2@34um

Beam parameter product (Annular Beam) (mm*mrad): ≤3.6@100um

Central Emission Wavelength (nm): 1080±10

Spectral Width @3dB (nm): <5

Armored Cable Length (m): 10

Cooling method: water cooled

Operating voltage (V): 380±10%

Maximum power consumption (KW): 14

Switch on/off time (us): 20

Maximum modulation frequency (kHz): 5

Operation Temperature (℃): 10 ~ 40

Storage temperature (℃): -10 ~ 60

Net weight: 200 kg

Size (W x D x H): 1120×674×797 mm
