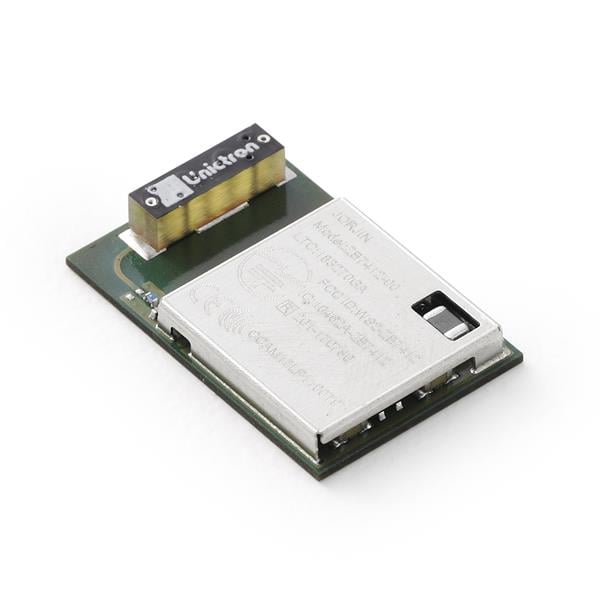

Jorjin ZB7412-00 Bluetooth Modules Based on TICC2640R2F and supports BLE5.0 & Cortex M3 embedded

Core: ARM Cortex M3

Class: Class 2

Width: 11 mm

Height: 2.45 mm

Length: 16.9 mm

Protocol: Bluetooth 5.0

Data Rate: 2 Mb/s

Frequency: 2.4 GHz

Dimensions: 16.9 mm x 11 mm x 2.45 mm

Memory Size: 275 kB, 8 kB

Output Power: 5 dBm

Interface Type: UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Receiver Sensitivity: - 96 dBm

Supply Voltage - Max: 3.8 V

Supply Voltage - Min: 1.8 V

Operating Supply Voltage: 1.8 V to 3.8 V

Supply Current Receiving: 6.2 mA

Supply Current Transmitting: 9.4 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
