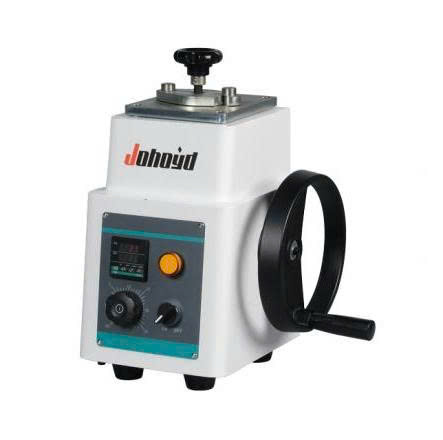

Johoyd XQ-2B Type metallographic sample mounting machine (400W, 0–200°C)

Technical parameter：

Die Specification: Standard fitting φ30（Matching：φ22φ45), Special customizable

Effective depth of die: 35mm

Heating Power: 400W

After burner mode: Manual mechanical pressurization

Temperature setting range: 0-200Degree Centigrade

Suitable for mosaic material: Thermoset

Power supply: Voltage：220V, Frequency：50HZ

Total power: 400W

Contour dimension: 330X250X370

Weight: 30KG

Tessellation time setting range: 0-30Minutes（The General Mosaic Time is suggested to be about 15 minutes）

Main functions and features：

1、Economical and durable

2、Using precision mechanical transmission pressure, durable

3、Suitable for micro, irregular shape, need to protect the edge of the sample or need to be automatically polished samples
