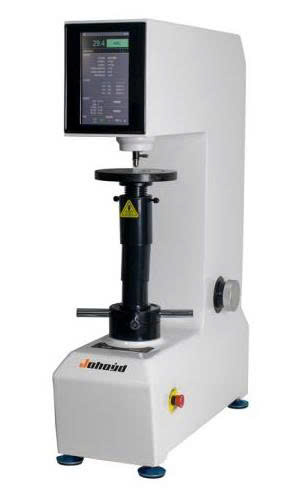

Johoyd XHRTS-150 Rockwell Hardness Tester (60kgf~150kgf)

- Technical Parameters:

Intial test force(N): 10kgf(98.07N), allowable error ±2.0%

Total test force (N): 60kgf(588N), 100kgf(980N), 150kgf(1471N)

Rockwell ruler: HRE、HRM、HRL、HRR、HRF、HRG、HRH、HRK

Inspection standard: GB/T230 National Standard, JJG884 Verification Regulation

accuracy: 0.1HR

Durating time(s): 1-60

Hardness reading: Tourch screen LCD digital diplay

Max height of the test piece(mm): 170

Indenter center to body distance (mm): 165

Dimension (mm): 550×220×730

Power supply: 220V/50HZ

Weight (kg): 85

Measuring range: HRD:40-77, HRE:70-94, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-110, HRR:114-125

Main features and features:

Main functions and features of the instrument

1. The 7-inch LCD touch screen can directly display the hardness value, convert the hardness, test method, test force, brightness, initial test force retention time, total test force retention time, elastic recovery time, measurement times, statistical data, test time Wait for the test process to be intuitive and clear;

2. The system comes with a calibration function, which can automatically adjust the error range of 80-120%, or calibrate the instrument separately for low and high values

3. When testing the curved surface, it is automatically corrected according to the standard curved surface radius;

4. 100 sets of test data can be stored, and the test data can be viewed at any time, and the current data can also be deleted or all the test data can be cleared;

5. The test force units can be converted mutually, the conversion unit is: (Kgf, N)

6. Simultaneous display: maximum value, minimum value, average value, test times, product name;

7. The main interface can display 4 conversion scales at the same time, and can switch: National Standard (GB), American Standard (ASTM) and International (ISO) Standards. A total of 20 measuring scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK, HBW, HS, HBS, HV, Rm (tensile strength),

8. The screen sleep time can be set, and it will automatically enter the sleep state if it is not operated for a long time, saving environmental protection;

9. The upper and lower limit measurement range can be set, displayed on the main measurement interface, and the unqualified value will automatically prompt an alarm;

10. There are 14 languages in the operating system, which can be switched at will: Chinese, Traditional Chinese, English, Russian, German, French, Spanish, Portuguese, Turkish, Czech, Japanese, Korean, Thai, Vietnamese;

11. Equipped with a built-in printer, test data can also be output to U disk via USB for storage and analysis;

12. The casting shell has a stable and non-deformed structure in one-time molding, high-grade pure white car paint, strong scratch resistance, and it is still bright as new after many years of use;

13. Our company has the ability to develop, design and produce on its own. Our machines provide parts replacement and maintenance upgrade services for life;

Main use and scope of application:

Cast and forged parts · Sample testing and acceptance testing

Planar and cylindrical workpieces ·Steel, non-ferrous metals

Automotive and aerospace industry ·Carbide, ceramic, stainless steel

Laboratory and workshop non-metallic plastics, hard rubber, synthetic resins, friction materials and softer metals
