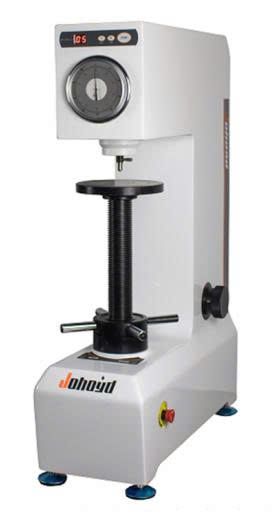

Johoyd XHR-150DT Rockwell Hardness Tester (60kgf ~150kgf)

- Technical Parameters:

Initial test force: 10kgf(98.07N)

Total test force (N): 60kgf(588N), 100kgf(980N), 150kgf(1471N)

Rocky ruler: HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK

Hardness test range: HRD:40-77, HRE:70-94, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-110, HRR:114-125

Data output: Dial reading

Inspection standards: GB/T230 National Standard, JJG884 Verification Regulation procedure

Maximum height of the test piece: 170mm

Indenter - outside wall distance (mm): 135mm

Power supply: AC220V+5%,50~60Hz

Dimensions (mm): 463*240*650

Instrument weight (kg): Around 70Kg

Main features and features:

1. The hardness value is directly read through the dial pointer, the pointer is sensitive, and the measured result is higher than the national standard;

2. The shell is formed by a special sand-casting process. The structure is stable and not deformed, and it can work under harsh environment. The car paint has high grade and strong scratch resistance. It is still bright and new for many years.

3, test force: application, load, unloading automatically completed;

4. We have the ability to develop and design, manufacture and process our own machines. Our machines provide replacement and maintenance upgrade services for life.

Main use and scope of application:

Non-metallic plastics, hard rubber, synthetic resins, friction materials and softer metals in laboratories and workshops;
