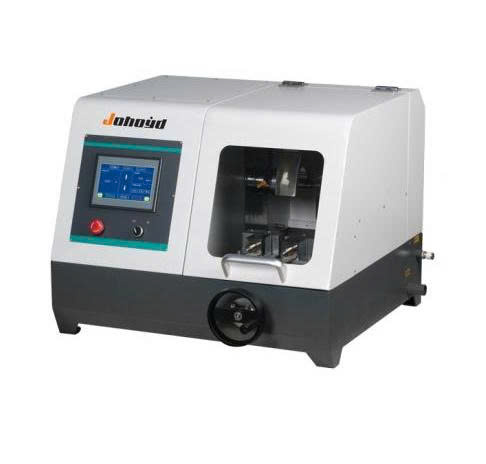

Johoyd Q-100Z cutting maching (2800r/min, 3 kW)

Technical parameter：

Cutting method: Manual cutting, continuous cutting, pulse cutting

Feed speed: 0.01-3mm/s can be set arbitrarily

Cutting disc size: φ350xφ32x2.5mm

Spindle speed: 2800rpm

Cutting table size: 325X305mm

Y-axis travel: 270mm

Maximum cutting diameter: φ100mm

Motor power: 3KW

Power supply: Three-phase four-wire 380V 50HZ

LCD screen: Touch screen

Cutting fixture: Threaded clamp, customizable

Cooling water tank capacity: 50L

Dimensions (WXDXH): 900x920x670mm

Wooden box dimensions: 990X1040X810

Water tank dimensions: 685X530X640

Net weight: 290KG
