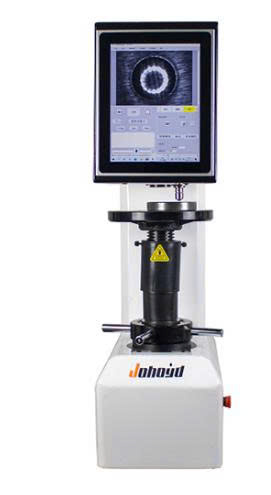

Johoyd PCHBST-3000Z Brinell Hardness Tester (31.25kgf ~ 3000kgf, 8 ~ 650 HBW)

- Technical Parameters:

Brinell Ruler: HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000

Test force: 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)

Loading control: Automatic (loading/holding/unloading)

Maximum height of specimen: 220mm

Indenter-outer wall distance: 135mm

Indenter-upper wall distance: 55mm（The distance from the indenter to the upper machine wall can be increased by customizing the indenter ）

Smallest unit of measurement: 0.125um

Dwell time: 0~60s

Hardness test range: 8~650HBW

Turret: Automatic turret

Hardness reading: PCAutomatic hardness measurement

Error correction: The system calibrates the hardness at any time

Qualified judgment: The qualified range can be set, and the machine automatically reminds whether it is qualified

Total magnification: 20X

Executive standard: EN ISO 6506, ASTM E-10-08, GB/T231.2，JJG150 -2005

Data output: The computer saves the test data directly

power supply: AC220+5%,50~60Hz

Overall size (mm): 520*210*745mm

Host weight: About 125kg

Main functions and features:

1. This machine has the characteristics of high precision, high repeatability and stability, simple operation, convenient and practical, and high cost performance;

2. The system automatically prompts to measure the minimum thickness of the product;

3. Possesses level 10 test capability, and can test a wider range;

4. Equipped with digital display micrometer eyepiece and accurate data calculation system, the hardness value can be directly displayed with just one tap;

5. Equipped with a built-in printer to output the measurement data or connect to the computer to transmit the measurement data of the host to the computer for editing and saving;

6. Equipped with high-performance stepper motor to automatically load and unload the test force, the noise generated during the test is smaller

7.Using photoelectric sensor technology and microcomputer control system, it can automatically compensate, and the test results are accurate and stable;

8. Automatically enter the indentation diameter and directly display the hardness value, which can realize dual display of any hardness unit, avoiding the cumbersome check-up table;

9. Self-contained design of high-magnification LED optical measurement, high image clarity, adjustable brightness, long-term operation is not suitable for fatigue;

10. The shell is cast at one time, the structure is stable and does not deform, and it can work in a relatively harsh environment;

11. The surface is treated with the car paint process, which has strong scratching ability and is still as bright as new after years of use;

Main purpose and scope of use:

1. It is suitable for the hardness test of metal materials with large crystal grains, which can reflect the comprehensive performance of the material;

2. Cast iron, steel, non-ferrous metals, especially suitable for softer metals, such as pure aluminum, lead, tin, etc.

3. It can be used to measure the hardness of some non-metallic materials, such as hard plastic, bakelite, etc.
