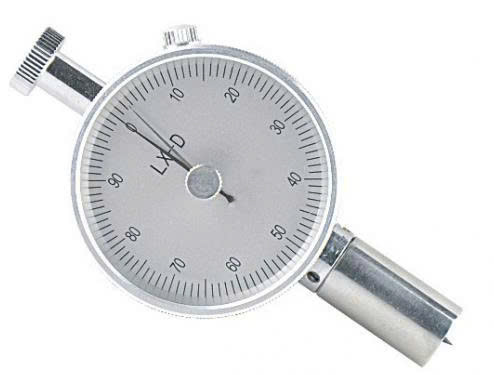

Johoyd LX-D-2 Shore hardness tester (0–100HD; 1°)
Technical Parameters:
Measuring range: 0-100HD
Measurement error: Within 10-90 degrees，error<±1 degrees
Resolution: 1°
Needle stroke: 2.5mm
Needle end pressure: 0-44.5N
Needle head size: SR0.1MM
Product size: 115×60×25mm
Weight: About 160g
Product standard and applications:
1. The products are produced according to the ISO 868 and ISO 7619 international standards and meet the standards of GB/T531, JB6148 and JJG304
2. Hardness test of high hardness materials such as hard rubber, hard resin, acrylic, plexiglass, thermoplastic plastics, printing plates, and fibers
Features:
It is not necessary to observe the value in real time according to the change of the measurement angle. As soon as the measurement is performed, the driven pointer is directly positioned on the measured numerical scale, which facilitates reading and eliminates the error caused by the change of the observation angle.
