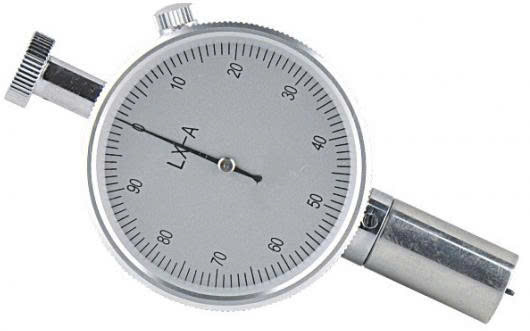

Johoyd LX-A-2 Shore hardness tester (0–100HD; 1 degrees)
ManufacturerJohoyd(View more products from this manufacturer)
ModelLX-A-2
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Technical Parameters:
Measuring range: 0-100HD
Measurement error: Within 10-90 degrees，error<±1 degrees
Resolution: 1 degrees
Needle stroke: 2.5mm
Needle end pressure: 0.55N-8.05N
Needle head size: Φ 0.79mm
Product size: 115×60×25mm
Weight: About 160g
Product standard and applications:
1. The products are produced according to the ISO 868 and ISO 7619 international standards and meet the standards of GB/T531, JB6148 and JJG304
2. It is widely used in the hardness test of low and medium hardness plastics, all kinds of rubber, multi-component grease, leather, wax, etc.
Features:
It is not necessary to observe the value in real time according to the change of the measurement angle. As soon as the measurement is performed, the driven pointer is directly positioned on the measured numerical scale, which facilitates reading and eliminates the error caused by the change of the observation angle.
