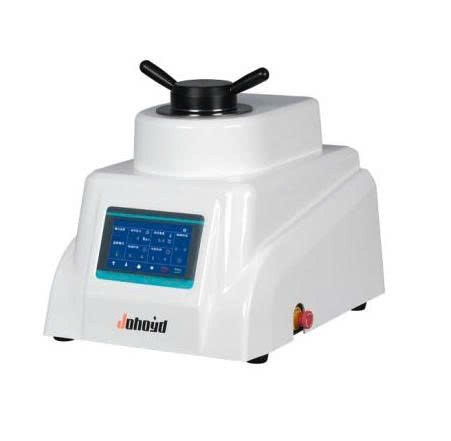

Johoyd HXQZ-1 Fully automatic metallographic specimen mounting machine (2KW, 0–200°C)

Technical parameter：

Mold specifications: Standard φ30 (optional: φ22, φ45), special customization available

Heating power: 2KW

Temperature setting range: 0-200 degrees Celsius

Insulation setting range: 0-99 minutes

Cooling setting range: 0-99 minutes

Power supply: Voltage: 220V Frequency: 50HZ

Total power: 2.2KW

Dimensions: 460X600X500

Wooden box dimensions: 530X680X630

Weight: 60KG

Product advantages:

1. The shell is made of high-end ABS one-piece molding, with a novel appearance, high-end atmosphere and high grade.

2. Touch screen display control, clear and intuitive interface, easy to operate.

3. Adopt precision mechanical transmission pressurization, durable.

4. The whole process is fully automatic closed-loop control, and all inlay processes can be completed automatically with just one button.

5. It has its own cooling system, which cools faster and has higher inlay efficiency.

6. A variety of mold specifications are available, and special molds can be customized according to customer needs.

7. It can be operated manually or automatically. It can be DIY operated according to customer needs, which is more flexible and convenient to use.

8. It can store more than 100 sets of inlay process formulas, which is convenient for quick call and serial production.

9. It can meet various customized needs of customers according to customer needs and provide all-round one-stop service.

10. It can inlay 2 samples at the same time, which instantly doubles the inlay efficiency.

11. The program has built-in intelligent algorithm, and time mode and temperature mode can be selected (especially for first-time users).

12. A chiller can be optionally equipped to realize refrigeration cycle to solve the faucet constraint. (Optional)
