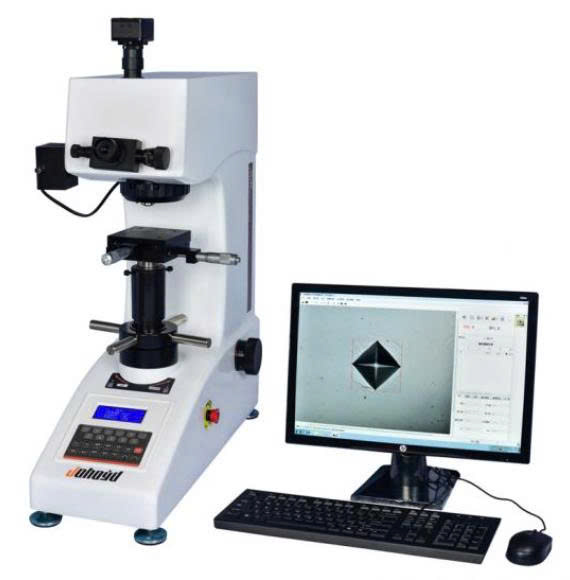

Johoyd HV-5Z Vickers Hardness Tester (0.3kgf ~ 5.0kgf)

Technical parameter:

Vickers hardness scale: HV0.3,HV0.5,HV1.0,HV2.0,HV3.0,HV5.0

Display: The automatic reading menu displays 5-digit hardness value; 4-digit diagonal length (D1, D2) test force, hold time, test times, return

Test force (Kgf): 0.3, 0.5, 1.0, 2.0, 3.0, 5.0

Load control: Automatic (load/hold/unload)

Test force retention time (s): 1~99

Optical channel: Dual optical channel (eyepiece and CCD camera channel)

Optical system: Objective lens: 10× 20×;

Eyepiece: 10×

Total magnification: 100× 200×

Measuring range: 800μm 400μm

Resolution: 1μm 0.5μm

Hardness measurement range: (5-3000)HV

Maximum height of specimen (mm): 165

Maximum width of test piece (mm): 130 (distance from the center line of the indenter to the wall of the machine)

Executive standard: GB/T4340.2 Chinese standard (GB/T4340.2 Chinese Standard),

JJG151 Inspection Rule (JJG151 Inspection Rule)

voltage: AC220V/50HZ

Dimensions (mm): 585×200×630

Weight (kg): 42

- Main functions and features:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope with adjustable brightness and comfortable vision.

2. On the industrial display screen, the hardness value can be visually displayed, the hardness can be converted, the test method, the test force, the time of the charge and the number of measurements, and the test process can be intuitively understood.

3, Cast aluminum shell molding, the structure is stable and not deformed, high-grade automotive paint, anti-scratch ability, use for many years is still bright as new;

4. Our company has its own R&D, production and processing capabilities. Our machines provide parts replacement and maintenance upgrade services for life.

5, HV-5Z models can be achieved: observation - test - measurement of the position switch by the automatic turret

- The main purpose and scope of application:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures

2. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating

3. glass, wafers, ceramic materials, carbonization;
