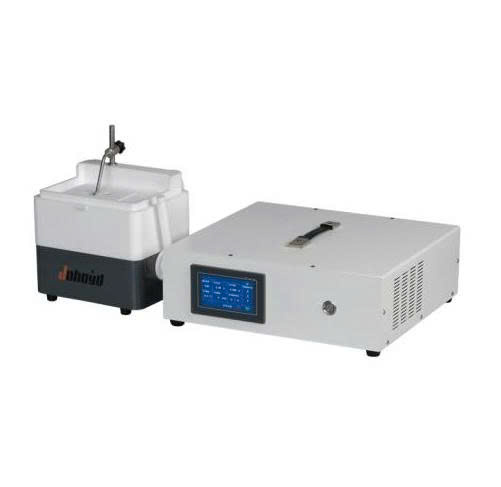

Johoyd HEP-60V ELectrolytic Polishing Corrosion Apparatus (500 ~ 1000 ml)

Technical parameter：

Sample plate specifications: φ10, φ15, φ20 can be customized

Electrolysis output: DC 0∽60V / 0∽20A, continuously adjustable, digital input and output

Power supply: Voltage: 220V Frequency: 50HZ

Electrolyte capacity: 500∽1000ml

Control box dimensions: 400×400×135mm

Corrosion workbench dimensions: 270×230×320 mm

Weight: 10Kg

Shipping accessories:

Control box: 1 Set

Corrosion workbench: 1 Set

Sample plate: 3 Piece (One piece each for φ10, φ15, and φ20)

Power cord: 1 Root

Water inlet pipe: 1 Root

Water outlet pipe: 1 Root

Technical documents: 1 copy of product manual 1 copy of product certificate

Product advantages:

1. Use touch screen for control and display, high-end and classy.

2. Output DC (0~60V/0~20A), with a wide voltage and current range, which can meet the polishing and corrosion of various materials at the same time (current/voltage values can be customized)

3. Self-contained cooling system

4. Constant current or constant voltage working mode

5. Current and voltage output are continuous, stable and adjustable

6. The water pump speed can be infinitely adjusted to meet various needs

7. The polishing (corrosion) area is adjustable and can be flexibly adjusted according to the actual situation of the sample. It is suitable for the preparation of metallographic samples of various materials, shapes and sizes (the sample cover opening diameter is 10mm, 15mm, 25mm)

8. The polishing/corrosion working time can be set by yourself

9. The polishing/corrosion time can be timed and the working time can be continuously displayed in real time

10. The stirring device ensures that the polishing/corrosion medium is uniform and the sample surface environment is consistent

11. The shell adopts a double anti-corrosion structure of all stainless acid-resistant steel and surface spraying, and the liquid storage tank is made of acid-resistant materials to ensure long-term and reliable use of the instrument

12. Power supply overvoltage, overheating and mains input over-voltage and under-voltage protection

13. High temperature alarm output protection
