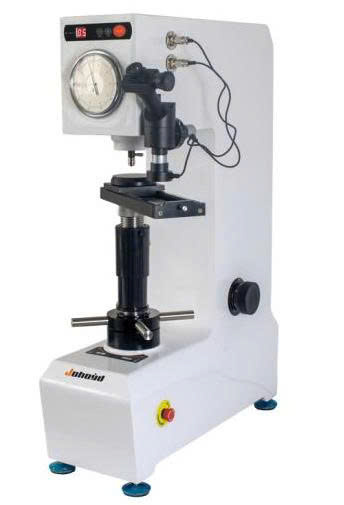

Johoyd HBRV-187.5 Electric Bulowie Hardness Tester (Rocket：20~100, Vickers ：8~2900, Brinell：3~650HBW)

- Technical Parameters:

Force value: 30 -187.5kgf, Level 7 test force

Brinell Ruler: HB1/30、HB2.5/31.25、HB2.5/62.5、HB2.5/187.5、HB5/62.5、HB10/100

Brinell test force: 30、31.25、62.5、100、187.5Kgf（294.2、306.5、612.9、980.7、1839N）

Rocket Ruler: HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、HRL、HRM、HEP、HRR、HRS、HRV

Rocket test force: 60kgf(588N), 100kgf(980.7N), 150kgf(1471N)

Vickers Ruler: HV30/HV100

Vickers test force: 30kgf(294.2N), 100kgf(980.7N)

Objective lens: 2.5X objective lens 5X objective lens

Microscope magnification: Brinell：37.5×，Vickers ：75×

Smallest unit of measurement: Brinell：0.004mm; Vickers ：0.002mm

Maximum test height: Rocket：185mm, Brinell, Vickers ：120mm

Holding Time: 2~60s

Hardness test range: Rocket：20~100, Vickers ：8~2900, Brinell：3~650HBW

power supply: AC220+5%,50~60Hz

Dimensions (mm): 530*200*700

Host weight: 95kg

Main features of the instrument

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;

2. It has three test methods, Brinell, Rockwell and Vickers, and seven-level test force, which can meet various hardness test requirements;

3. The cast shell has a stable and non-deformed structure in one-time molding, high-grade pure white car paint, strong scratch resistance, and it is still bright as new after many years of use;

4. Our company has the ability to research, develop, design, produce and process by ourselves, and provide parts replacement and maintenance upgrade services for our machines for life;

The main purpose and scope of use of the instrument:

1. Determine the Brinell, Vickers and Rockwell hardness of ferrous metals, non-ferrous metals and cemented carbides:

2. Brinell hardness of castings, annealed steel, normalized steel, non-ferrous metals and soft alloys;

3. Rockwell hardness of heat-treated materials such as quenching and quenching and tempering;

4. Vickers hardness of nitriding layer, ceramics, thin plates, metal flakes, electroplating layers, and small parts;
