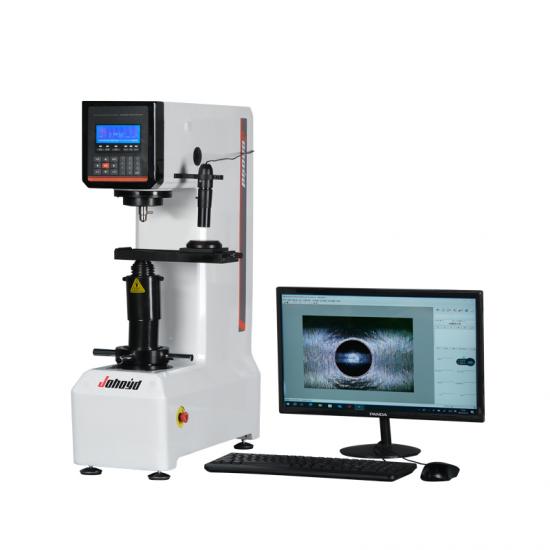

Johoyd HBE-3000S Brinell Hardness Tester (62.5kgf ~ 3000kgf, 8 ~ 650 HBW)

- Technical Parameters:

Brinell ruler: HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000

Test force: 62.5kgf(612.9N)、100kgf(980.7N)、125kgf(1226N)、187.5kgf(1839N)、250kgf(2452N)、500kgf(4903N)、750kgf(7355N)、1000kgf(8907N)、1500kgf(14710N)、3000kgf(29420N)

Load control: Automatic (loading/loading/unloading)

Maximum height of the test piece: 220mm

Minimum unit of measure: 0.005mm

Time of protection: 0~60s

Hardness test range: 8~650HBW

Total magnification: 20X

Executive standard: EN ISO 6506, , ASTM E-10-08, GB/T231.2，JJG150 -2005

Indenter-outer wall distance: 135mm

Indenter-upper wall distance: 55mm (can increase the pressure from the indenter to the upper wall by customizing the indenter)

Hardness reading: Direct measurement by computer

power supply: AC220+5%, 50~60Hz

Dimensions (mm): 520*210*745mm

Host weight: About 120kg

Main functions and features:

1. Equipped with precision sensors and CPU microcomputer control system, which can automatically compensate, and the test results are accurate and stable;

2. Possesses level 10 test capability, and can test a wider range;

3. Equipped with a movable measurement platform and a computer measurement system, with a high test speed and more measurement functions;

4. Equipped with a high-performance stepper motor to automatically load and unload the test force, and the noise generated during the test is smaller;

5. The shell is cast at one time, the structure is stable and does not deform, and it can work in a relatively harsh environment;

6. The surface is treated with the car paint process, which has strong scratching ability and is still bright as new after years of use;

7. This machine is equipped with Brinell image measurement software, which greatly improves work efficiency.

Main purpose and scope of use:

1. It is suitable for the hardness tester test of metal materials with large grains, which can reflect the comprehensive performance of the material;

2. Cast iron, steel, non-ferrous metals, alloys, especially for softer metals, such as pure aluminum, lead, tin, etc.;

3. It can be used to measure the hardness of some non-metallic materials such as hard plastics and bakelite;
