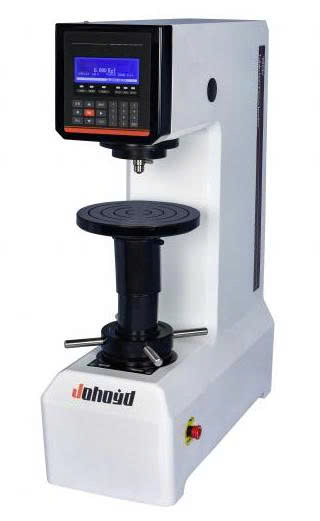

Johoyd HBE-3000A Brinell Hardness Tester (62.5kgf ~ 3000kgf, 3.18 ~ 653 HBW)

- Technical Parameters:

Brinell ruler: HBW2.5/62.5  HBW2.5/187.5 HBW5/62.5  HBW5/125  HBW5/250  HBW5/750       HBW10/100、   HBW10/250、   HBW10/500、   HBW10/1000  HBW10/1500、HBW10/3000

Test force: 62.5kgf(612.9N)、100kgf(980.7N)、125kgf(1226N)、187.5kgf(1839N)、250kgf(2452N)、500kgf(4903N)、750kgf(7355N)、1000kgf(8907N)、1500kgf(14710N)、3000kgf(29420N)

Load control: Automatic (loading/loading/unloading)

.Maximum height of the test piece: 220mm

Minimum unit of measure: 0.005mm

Time of protection: 0~60s

Hardness test range: 3.18~653HBW

Total magnification: 20X

Executive standard: EN ISO 6506, , ASTM E-10-08, GB/T231.2，JJG150 -2005

Indenter-outer wall distance: 135mm

Indenter-upper wall distance: 55mm (can increase the pressure from the indenter to the upper wall by customizing the indenter)

Hardness reading: After the indentation is measured through the eyepiece, the length of the indentation is directly input by the button to obtain the hardness value.

Data output: Built-in printer, print content: test conditions, number of measurements, average, maximum, minimum, maximum error, etc.

power supply: AC220+5%, 50~60Hz

Dimensions (mm): 520*210*745mm

Host weight: About 120kg

Main functions and features：

1.Equipped with precision sensors and CPU microcomputer control system, which can automatically compensate, and the test results are accurate and stable;

2. Possesses level 10 test capability, and can test a wider range;

3. After measuring the indentation through the eyepiece, press the key to input the indentation length to directly obtain the hardness value, which improves work efficiency;

4. Equipped with a built-in printer, which can analyze and print the measurement data.

5. Equipped with high-performance stepper motor to automatically load and unload the test force, the noise generated during the test is smaller;

6. The shell is cast in one time, the structure is stable and does not deform, and it can work in a relatively harsh environment;

7. The surface is treated with the car paint process, which has strong scratching ability and is still bright as new after years of use;

8. This machine can be equipped with Brinell image measurement software, which greatly improves work efficiency;

Main purpose and scope of use:

1. It is suitable for the hardness tester test of metal materials with large grains, which can reflect the comprehensive performance of the material;

2. Cast iron, steel, non-ferrous metals, alloys, especially for softer metals, such as pure aluminum, lead, tin, etc.

3. It can be used to measure the hardness of some non-metallic materials such as hard plastics, bakelite, etc.
