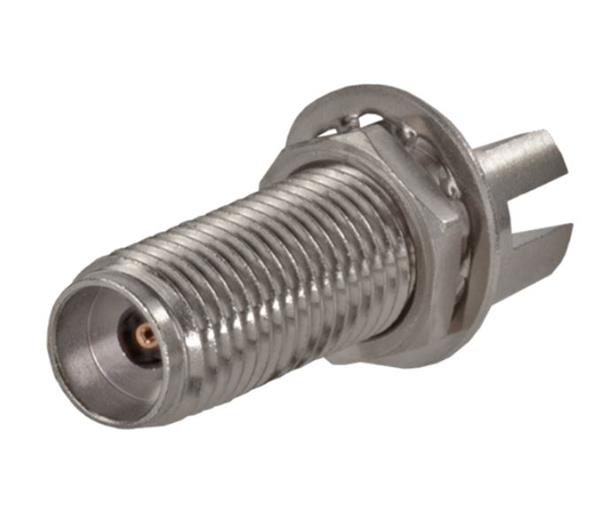

Johnson / Cinch Connectivity Solutions 147-0701-411 Receptacles 2.4mm Bulkhead Jack, PCB End Launch, .062" Board Thickness
Model147-0701-411
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
RF Series: 2.4 mm
Body Style: Bulkhead
Body Finish: Nickel
Orientation: Straight
Body Material: Brass
Mating Cycles: 500 Cycles
Mounting Style: PCB Mount
Voltage Rating: 150 VAC
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 50 GHz
Termination Style: Solder
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
