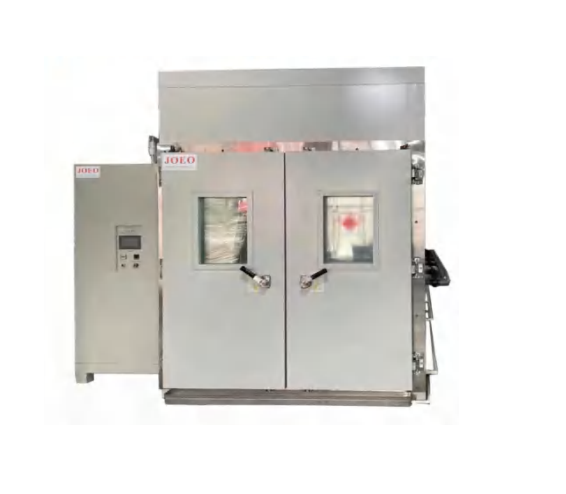

Joeo W-STH-4000-E Temp Humidity Salt Spray Chamber (3780L; -55℃ ~ +85℃; 20~95%RH)

Internal Dimension WxHxD (mm): 1500x1800x1400

External Dimension WxHxD (mm): 1600x2850x2380

Capacity (L): 3780

Test Standard: ACSS, SOAK , DRYAIR , HUMI, ROOMAIR

Temperature Range: -55~ +85℃

Humidity Range: 20% ~95% R.H ,15%~95% R.H add dehumidifier or Dryer

Temperature Rising/ Falling Speed Rate:

+ Temperature rising approx:0.1~ 3.0℃/min( 3-10℃/min whole Course Average-optional)

+ Temperature falling approx:0.3-1.0℃/min ( 3-10℃/min whole Course Average-optional)

Analytic Accuracy/ Distribution Uniformity of Temp & Humidity: 0.1℃ ; 0.1% R.H / ±2.0℃ ; ±5% R.H

Control Accuracy of Temperature: ±0.5℃; ±2.5%R.H

Pressure Bucket Temperature: Saline test method (NSS ACSS) 47±1℃; Corrosion Test (CASS)63±1℃

Compressed Air Pressure (KGf): 1.0-6.0

Spray Volume: 1.0-2.0ml/80cm²/h (working at least 16 hours, and take the average value)

Compressor: French "Tecumseh" Brand, Germany "Bitzer" Brand or samilar brand

Optional Accessories: Sample shelf , Cart etc

Spray Method: Continuous spray or Programmable spray

Power: AC220V,1phase3 lines 50/60Hz; AC380V,3 phase 5 lines 50/60Hz
