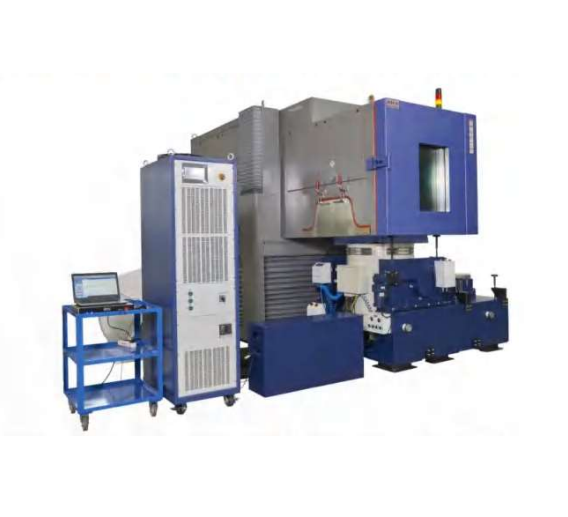

Joeo VTH-5000-E Temperature/Humidity/Vibration Combined Chamber (5000L; -60~150℃; 20~98%RH)

Capacity(L): 5000

Working space Internal Dimension WxHxD (mm): 1600x1600x1800

Without Vibration Tester's Height External Dimension WxHxD(mm) : 2300x2280x5350

Dimension of Vibration Shaker's Table: 1200x1200

Temperature Range

+ High Temperature : 150℃(optional: 200℃)

+ Low Temperature : -60℃

Humidity Range: 20% ~98%R.H. (10%～98% R.H./5% ～98% R.H,is a special optional condition,need Dehumidifier)

Analytic Accuracy/ Distribution Uniformity of Temperature and Humidity: 0.1℃ ; 0.1% R.H / ±0.2℃ ; ±0.3% R.H

Control Accuracy of Temperature: ±0.5℃ ; ±2.5% R.H

Temperature Rising/ Falling Speed Rate:

+ Temperature rising approx:0.1~3.0℃/min;

+ Temperature falling approx:0.1~1.2℃/min

+ (optional for 5℃/min, 10℃/min,15℃/min, 20℃/min,25℃/min Rising/Falling Speed Rate with average control or Linear average control)

Cooling System: Wind cooling or water cooling/single segment compressor (-40℃, double segment compressor -70℃)

Optional Accessories: Inner door with operation Hole , Recorder, Water Purifier, Dehumidifier

Vibration Test Equipment: Choose Vibration tester according to customer' s test condition, please take Vibration Test system' s catalog for reference

Structural Style: L-Elevator ,G -Gantry elevator , F-Fixture type

Power: AC380V,3 phase 5 lines,50/60HZ
