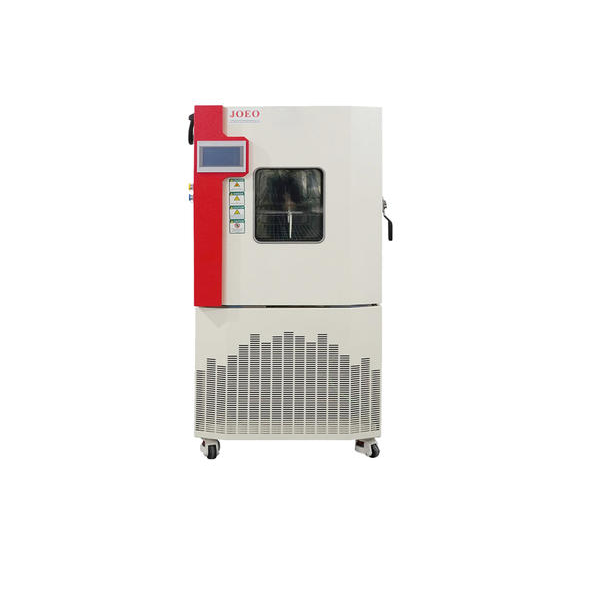

Joeo THC-80-E Climatic Test Chamber (-60℃~150℃; 20-98% RH; 400x500x400mm)

Internal Dimension (WxHxD mm): 400x500x400

External Dimension (WxHxD mm): 950x1450x1000

Humidity Range: 20% ~98%R.H. (10%～98% R.H./5% ～98% R.H,is a special optional condition,need Dehumidifier or Dryer)

Temperature Range: Low Temperature : -60℃; High Temperature : 150℃( 200℃)

Temperature Rising/ Falling Speed Rate: Temperature rising approx:0.1~ 3.0℃/min / Temperature falling approx:0.3-1.0℃/min

Analytic Accuracy/ Distribution Uniformity of Temperature and Humidity: 0.1℃ ; 0.1% R.H / ±1.0℃ ; ±3.0% R.H

Control Accuracy/fluctuation of Temperature and Humidity: ±1.0℃ ; ±2.0% R.H/ ±0.5℃ ; ±2.0% R.H

Optional Accessories: Inner door with operation Hole , Recorder, Water Purifier, Dehumidifier,Dryer etc

Compressor: French "Tecumseh" Brand, Germany "Bitzer" Brand or samilar brand

Power: AC220V; 1phase 3 lines ; 50/60HZ ; AC380V; 3phase 5 lines ; 50/60HZ

Approx. Weight (Kg): 150

Standard Compliance

High-temperature tests:

IEC 60068-2-2, Test B

ISO 16750-4, High-temperature test

ETSI EN 300019-2-4, Test Bb/Bd

MIL-STD-202 G, Meth. 108A

MIL-STD-810 G, Meth. 501.5

MIL-STD-883 J, Meth. 1008.2

JESD22-A103D

Alternating temperature tests

IEC 60068-2-14, Test Nb

ISO 16750-4, Temp. steps

ISO 16750-4, Temp. cycling

ETSI EN 300019-2-4, Test Nb

MIL-STD-331 C, Test C6

JESD22-A105C

Low-temperature tests

IEC 60068-2-1, Test A

ISO 16750-4, Low temperature

ETSI EN 300019-2-4, Test Ab/Ad

MIL-STD-810 G, Meth. 502.5

JESD22-A119
