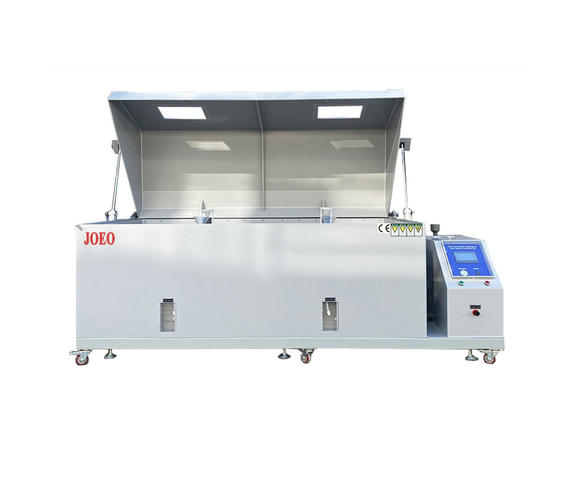

Joeo SSTC-60 Salt Spray Tester (110L/15L)

Internal Dimension WxHxD (mm): 600x450x400

External Dimension WxHxD(mm): 1100x600x1200

Lab Capacity(L): 110

Saline Capacity(L): 15

Lab Temperature: Saline test (NSS ACSS) 35 ± 1℃; Corrosion Test (CASS) 50 ± 1℃

Pressure Bucket Temperature: Saline test (NSS ACSS) 47 ± 1℃; Corrosion Test (CASS) 63 ± 1℃

Saline Concentration: 5% concentration of NaCI, or every Liter 5% NaCI add 0.26g CuCI2H20

Spray Volume: 1.0~2.0ml/ 80cm²/h (working at least 16 hours, and take the average value)

Spray Form: Continuous spraying or programmable spraying

Compressed Air Pressure(Kgf): 1.0 ~ 6.0

Power: AC 220V; 1∮ 3 lines

Approx. Weight (Kg): 65

Datasheet
