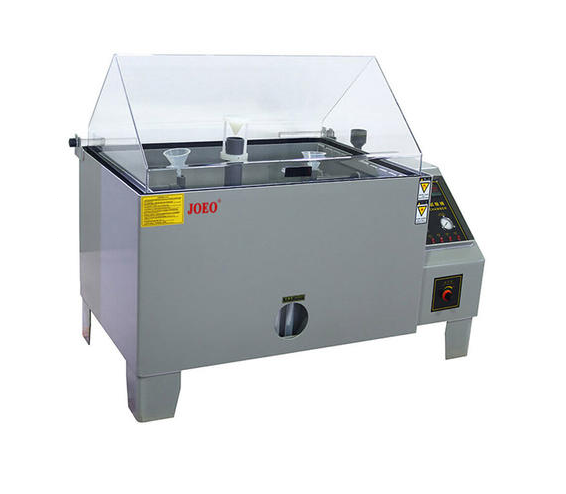

Joeo SDC-120 Salt Spray Tester (500L/25L)

Internal Dimension WxHxD (mm): 1200x800x500

External Dimension WxHxD (mm): 1900x1300x1400

Lab Capacity(L): 500

Saline Capacity(L): 40

Lab Temperature: Saline test (NSS ACSS) 35 ± 1℃; Corrosion Test (CASS) 50 ± 1℃

Pressure Bucket Temperature: Saline test (NSS ACSS) 47 ± 1℃; Corrosion Test (CASS) 63 ± 1℃

Saline Concentration: 5% concentration of NaCI, or every Liter 5% NaCI add 0.26g CuCI2H20

Compressed Air Pressure(Kgf): 1.0 ~ 6.0

Spray Volume: 1.0~2.0ml/ 80cm²/h (working at least 16 hours, and take the average value)

Spray Form: Continuous spraying or programmable spraying

Gas Density: 0.1~1% adjustable

Generated: Titration/cylinder method

Power: AC 220V; 1∮ 3 lines

Datasheet
