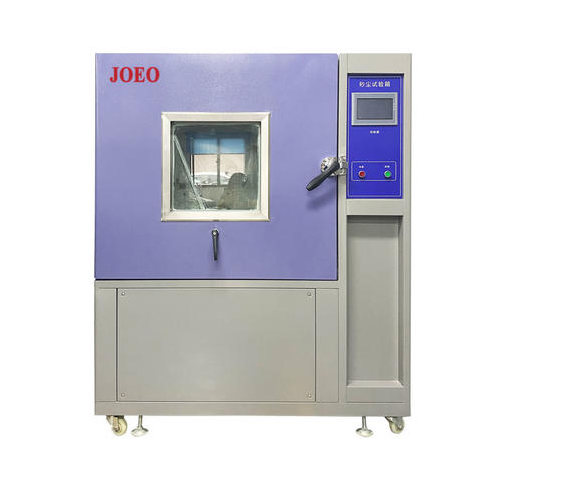

Joeo SDC-1000 Sand Dust Test Chamber (1000x1000x1000mm)

Internal Dimension WxHxD (mm): 1000x1000x1000

External Dimension WxHxD (mm): 1600x1800x1300

Temperature Range: RT（25℃ ± 15℃）to 50℃ , or lab temperature

Humidity Range: 35% ~ 90% R.H or lab humidity

Talcum Powder Dosage: 2 ~ 4Kg/m²

Metal Net Mesh Standard Diameter: 45-50μm

Diameter between Metal Wires: 75μm

Powder Spray & Dust Fall Mode:

1. Dust fall freely: adopt centrifugal fan to blow the sand or dust to the 1/5 of roof, then fall freely

2. Blow the sand or dust: pressure spray dust from the bottom, multi-steps pressure adjustable

Test Standard: Meet JIS, ISO, IEC60529,DIN40050,GB2423 test standard

Power: AC 220V: 1∮ 3 lines : 50/60HZ
