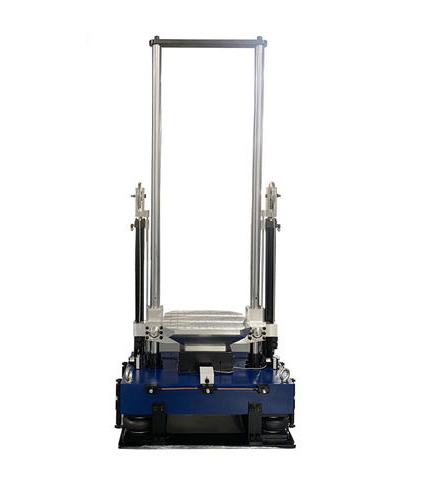

Joeo HVS-200-61 Acceleration Mechanical Shock Test Machine (200kg; 50-5000 / 150-2000 m/s2)

Name: 200kg shock table

Max. Load Capcity (kg): 200

Bench Size WxD(mm): 610x800

Shock form: Free fall

Shock waveform: Half Sine Wave; Post-peak sawtooth wave

Peak acceleration (m/s2) (Half Sine Wave/ Post-peak sawtooth wave): 50-5000 / 150-2000

Pulse width (ms) (Half Sine Wave/ Post-peak sawtooth wave): 30-1 / 18-3

External Dimension（mm): 1660x1615x2950

Oil source size (mm): 850x850x970

Control box size (mm): 850x650x1400

Weight(kg): 3200

Power: AC 380V 5kW

Meet standards: GJB150A GJB360B GJB548B GB/T2423 MIL-STD-202F MIL-STD-810F MIL-STD-883C IEC68-2-27
