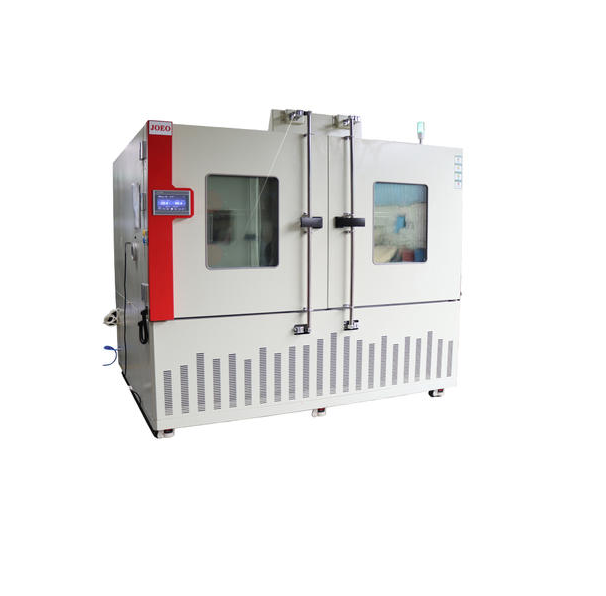

Joeo HLC-800-E Climatic Test Chamber (-60~150°C; 1000x1000x800mm)

Internal Dimension (WxHxD mm): 1000x1000x800

External Dimension (WxHxD mm): 1550x2000x1350

Temperature Range:

+ Low Temperature: -60°C

+ High Temperature: 150°C( 200°C is optional)

Temperature Rising/ Falling Speed Rate: Temperature rising approx:0.1-3.0°C/min; Temperature falling approx: 0.1-1.0°C/min (The falling speed rate Min1.0°C or more higher temperature per minute is special optional condition)

Analytic Accuracy/ Distribution Uniformity of Temperature: 0.1°C/ ±2.0°C

Control Accuracy/Fluctuation of Temperature: ±0.5°C/ ±2.0°C

Optional Accessories: Inner door with operation Hole, Recorder, Water Purifier, Dehumidifier, dryer etc

Compressor: French "Tecumseh" Brand, Germany "Bitzer Brand or samilar brand

Power: AC220V; 1phase 3 lines; 50/60HZ; AC380V; 3phase 5 lines; 50/60HZ

Approx. Weight (Kg): 560

Datasheet
