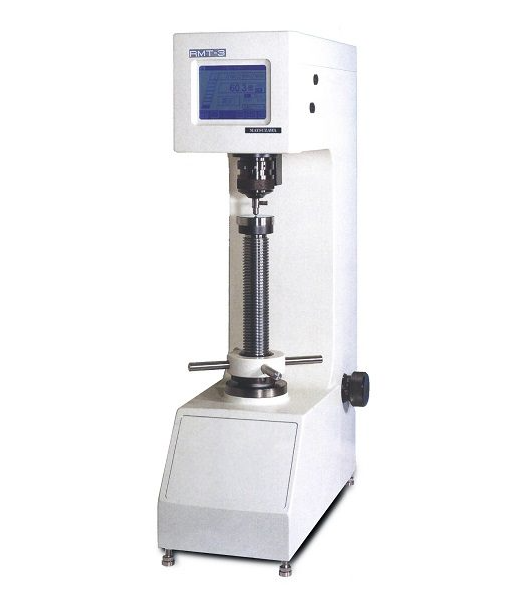

JISC RMT-1 Digital Rockwell Hardness Tester (588.4 N ; 980.7 N ; 1471 N)

Minor load: 98.07 N (10kgf)

Test load: 588.4N (60kgf); 980.7N (100kgf); 1471N (150kgf)

Minor load position setting: Automatic setting (LCD graph and electronic signal monitoring fine adjustment is unnecessary.)

Load control: Automatic (Loading --> holding --> release)

Start operation: Automatic start/ Manual start selection

Dwell time: 1~99 sec

Plastic measurement: Standard function, time up to hardness value display after release: 1 to 99sec

Scale display: C D A G B F K E H P M L V S R

Data output 1) Centronics (standard)

 2) RS232C or serial output selectable (Factory setting: RS232C)

Data memory: Max. 256 test data

Hardness conversion: Specified scale on real time display.

OK/NG criteria: Upper and lower limits setting, and HI/OK/LOW display.

Data edition: Batch conversion of memorized data. (Max.value, Min.value, dispersion ( R ), mean value) Converted values, same too.

RS232C Communication line: Baud rate: 1200/ 2400/ 4800/ 9600 bps selectable Error detection, Parity even/ Parity none/ selectable

Accuracy: Conform to JIS B7726 and ASTM E-18

Max.specimen height: 250mm

Max.specimen depth: 165mm

Dimensions: W220 x D540 x H830mm

Weight: Approx. 80kg

Power supply: Single phase AC100~240V 50/60Hz available for export models.

STANDARD ACCESSORIES:

ITEM: RMT-1

Hardness standard block:

80HR30N: ---

75HR30T: ---

HRC60: 1

HRB90: 1

Diamond indenter (Built in): 1

Carbide indenter (1/16" Ø): 1

Spare carbide ball (1/16" Ø): 5

Anvil:

60MM Ø flat: 1

V-SHAPE:

Lighting device (LED: green): OPTION

Spare fuse 100~120V 3A, 200~240V 2A: 2

Power cord (3P-2.5m): 1

Level adjusting leg: 4

Auxiliary tools: 1

Attachment for prevent the machine fall: 2

Machine cover: 1

FEATURES

–>LIQUID CRYSTAL DISPLAY TOUCH-PANEL

Loaded with a LCD display with backlight. The hardness tester secures very clear and high visibility

–>AUTO START

After setting the reference load, the test load is applied automatically . (Manual start is also possible)

–>EASY SETTING

Reference load can be easily set with a bar graph display on the bright screen and electronic sound. More over, an error-preventing device is also mounted.

–>PLASTIC MEASURING SYSTEM

Specific measuring method for plastic in compliance with ASTM and JIS is activated by one-touch easy operation. Time for reading the value after unloading the test load can be set freely

–>VARIOUS DATA PROCESSING FUNCTIONS

It makes acceptance and rejection judgement, conversion to other scales, and tabulation and computing for data memory (256 data), maximum value, minimum value, variation, average, standard deviation etc.

–>TRADITIONAL DIAL CHANGE-OVER SYSTEM

Dial changeover systems make change the test load easily by turning the dial.

Accordingly the design is dust-proof including the weights for test load.

–>APPLICABLE TO CE AND SAFETY

Safety design applicable to EU low voltage command, EMC command and machine command. In addition to high-rigidity body , overturn-preventive metal fittings are attached as standard to prevent overturning by earthquakes etc.
