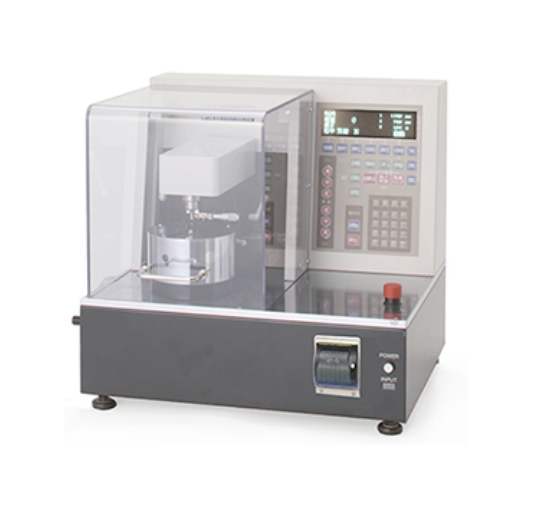

JISC PRO-TT-1NM Torsion Spring Tester (1Nm)

Maximum Torque: 1Nm

2-Step Auto Switch Over Range: 1000Nmm/ 100Nmm

Torque Resolution: 0.1Nmm/ 0.01Nmm

Test Speed: 10 ~ 1800 Deg/min

Maximum center pin diameter: Ø6.5

Maximum X-Axis Movement: 13mm

Maximum Y-Axis Movement: 50mm

Maximum Measuring Angle: 0.1 ~ 7200.0 Deg

Deflection Direction: Left & Right

Power Supply: Single Phase AC 200 ~ 240V (50/60Hz)

Power Rating: 200VA

Dimension: W550 x D450 x H520mm

Weight: 75kg

CHARACTERISTICS

• Manual or Automatic test can be selected.

• Measurement of torque and load, as well as angle based on torque or load input are done easily. (PRO-TS Type)

• Jacob Chuck is built in the rotating table which provides a very convenient structure for holding the center pin.

• Can saved up to 50 memories of test conditions . Test can start immediately once condition are retrieve.

FEATURES

Position of XY table and rotary table are display on the screen by numeric information from digital scale.

Position of Load Pin, support Pin & Center Pin are automatically calculated and display on screen.

OK / NG judgement is display by bar chart on the screen with spec input.
