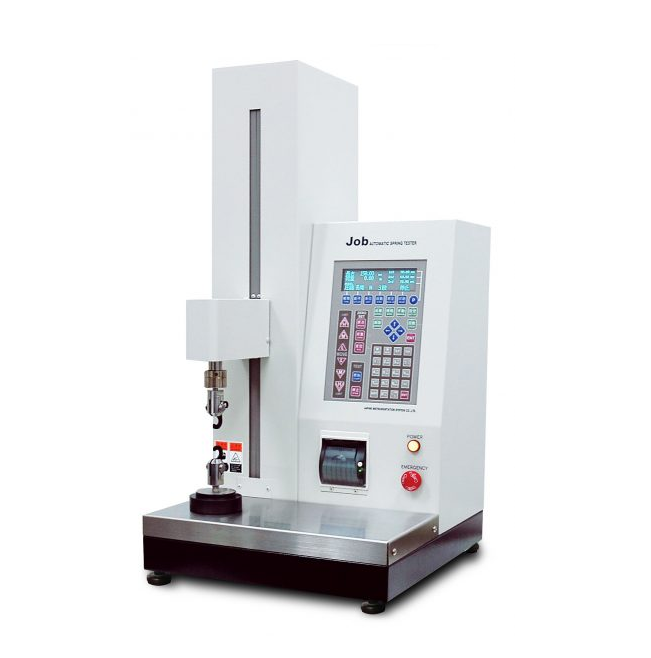

JISC JOB-CT-1KN Spring Tester (1kN (100kgf))

Maximum Load: 1kN (100kgf)

Auto Switch Over of Hi / Lo Range: 1kN / 100N

Resolution: 0.1N / 0.01N

Unit: gf, kgf, N & lbf

Load Accuracy: JIS B7738 Class 1 ( ±1.0% of Applied Load)

Maximum Stroke: Compression : 300mm Tension : 200mm

Resolution: 0.01mm

Length Accuracy: ±（0.05+0.0001 * L) mm where L is the arbitrary length

Test Speed: 1～600 mm/min

Standard Anvil (Steel): Upper & Lower Ø60mm

Power Supply: Single Phase AC 100V ~ 240V (50/60Hz)

Power Rating: 100VA

Dimension: W450 x D450 x H770mm

Weight: Approx. 50kg

CHARACTERISTICS

High Performance Amplifier, Servo Motor, Ball Screw with LM Guide to maintain high accuracy.

Models number can stored with specifications input for judgement purposes. Able to check 1, 2, 3 Step Load, Spring Rate, Free length, Initial Tension (Tension Spring) and Solid Height (Compression Spring).

Tolerance input by +/- value or {eb9cfd4e3b516869cb839b8b2c338ebd16b99827caa87fe8648376116c5dd92c}. Auto switch over for power supply of AC 110 to 240V. Can link up to computer using our BQC-01 QC Monitor software which has Histogram, Trend Chart and also X Bar R Chart for process control.

HIGH ACCURACY & LOW PRICE

Conform to JIS B 7738 Grade 1 Standard.

With our unique mechanical design and self develop software concept as an advantage, thus able to achieve high performance and low cost.

PROGRAM INSTALLATION METHOD

Upgrading of Program is made simple with our Flash ROM via Computer.

Special Sequence testing & programming is also Available though computer software.

MULTIPLE LANGUAGE TESTER

JOB Series consists of English, Japanese, Korean, Simplified Chinese & Traditional Chinese language.

4 Languages can be change anytime by user thus making standardize and consistent measurement which support worldwide testing.
