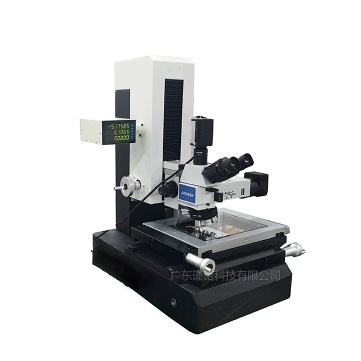

Jinuosh X2010 Manual Tool Metallographic Measuring Instrument (200, 100, 200mm)

Measuring Range: X-axis: 200 mm; Y-axis: 100 mm; Z-axis: 200 mm

External size (mm): 600*750*920

Marble size (mm): 380*320

Glass size (mm): 230*130

Weight (kg): 250kg

X/Y axis accuracy: 2.5um+L/200

Z-axis accuracy: 1.5 um+L/50

Load bearing glass: 20kg

Power equipment: 220V（AC）50HZ

Configuration:

X2010 Coarse and Precise Focus Unit

200x100mm Precise Stsge

U-Bracket Mount LV

LV-TI 3 Trinocular Eyepiece Tube

Quadruple Nosepiece,For 5 sets of Objectives

Eyepiece CFI 10x

5W LED Point Ligte built-inTransformer for piscopic Illumination

F-P Simple Polarizign Unit (For Episcopic Illumination)

DIC Prism

Power Supply (220V)

Photo Adapter

Axle counter

DS-Vil Color Camera Head

Measuring software measures accuracy0.1um

M Plan Apo HL 5X

M Plan Apo HL 10X

M Plan Apo HL 20X

M Plan Apo HL 50X

21.5 "HD display

DS Camera I/F Cable 20-26

USB A TO B CABLE

POWER CORD

Datasheet
