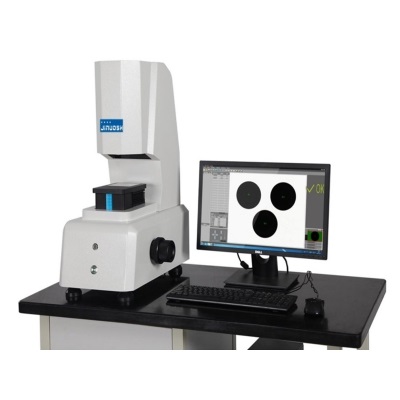

Jinuosh ST 80A One-key Measuring Instrument (desktop) (90×60mm)

Field of vision: 90mm×60mm

Measurement accuracy: ±3µm

Repeatability: ±1.5µm

Instrument dimensions: 650×430×950

Instrument weight: 50KG

Platform load bearing: 15KG

Image Sensor: 5 million pixel CCD

Lens: One-sided telecentric lens

Maximum workpiece height: 50mm

Lens working distance: 160mm

Lens depth of field: 10mm

Light source system: Parallel backlight

Software: JN-AOS. 2. 0

Computer setup: CPU 13 processor 4G memory

Monitor: 21.5-inch LCD monitor

Signal output: Judging the output PASS FAIL NULL

Working environment: 25°C±2℃ 20% to 80%RH

Measuring speed: ≤5 seconds (within 100 dimensions)

Power: 80W

Voltage: AC100-240V 50/60Hz
