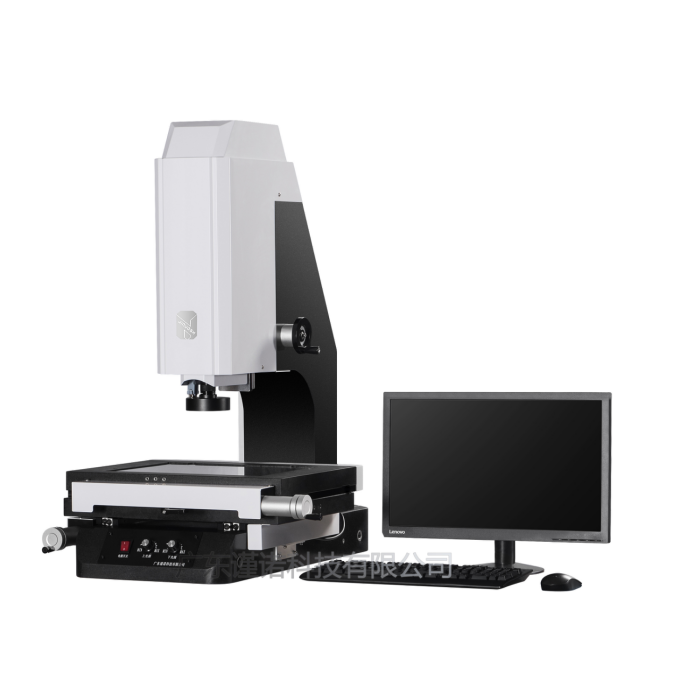

Jinuosh M5040 Two-dimensional Image Measuring Instrument (500*400*200mm)

Marble table size (mm): 650*520

Glass table size (mm): 530*430

Movement stroke (mm): X:500mm Y:400mm

Focusing stroke (mm) (Z axis): 200mm

Measurement and aiming system:

High resolution camera (CCD)

Continuous zoom objective magnification: 0.7-4.5X

Working distance: 90mm

Video magnification: 20-230X

Display resolution: 0.0005mm

Precision Image 2D Measurement Software

Indication error: X.Y ≤ (3 + L/200) um (L is the measured length unit: mm)

Lighting system: The ring surface light source and the transmission light source are LEDs, and the brightness is adjustable.

Dimensions (mm) (length × width × height): 800*1000*1200

Instrument weight (kg): 300kg

Glass table bearing: 20kg

Instrument power: 220V（AC) 50HZ
