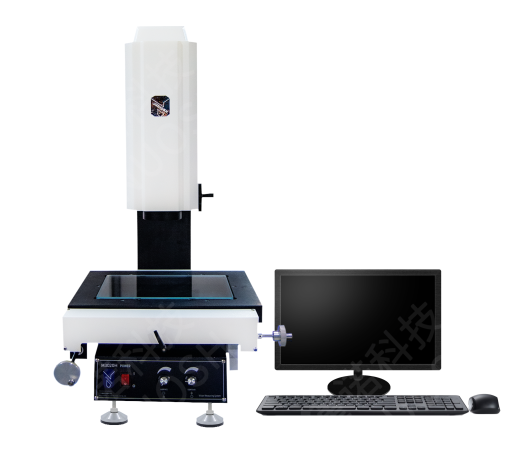

Jinuosh M3020H Manual Video Measuring System

Table size: 450*350

Stage glass size: 328*228

X-Y-Z Stroke: 300*200*200

Accuracy:

E1X, E1Y: (3+L/200)um (L = is the measured length, unit mm)

E1Z: (5+L/200)um (L = is the measured length, unit mm)

Observation and Image:

1/3"CMOS color camera

Working distance: 90mm

Zoom Lens:0.7X - 4.5X

Monitor magnification:28X - 164X

Jinuosh 2.5D Measurement Software

Max loading weight (Kg): 20

Net Weight (Kg): 135

Packing Weight (Kg): 185

Machine Dimensions (mm): 538*735*935

Packing Dimensions (mm): 1140*1140*1150

Illumination unit: WhiteLEDTransmittedIllumination

Instrument power sources: 220V (AC) 50Hz
