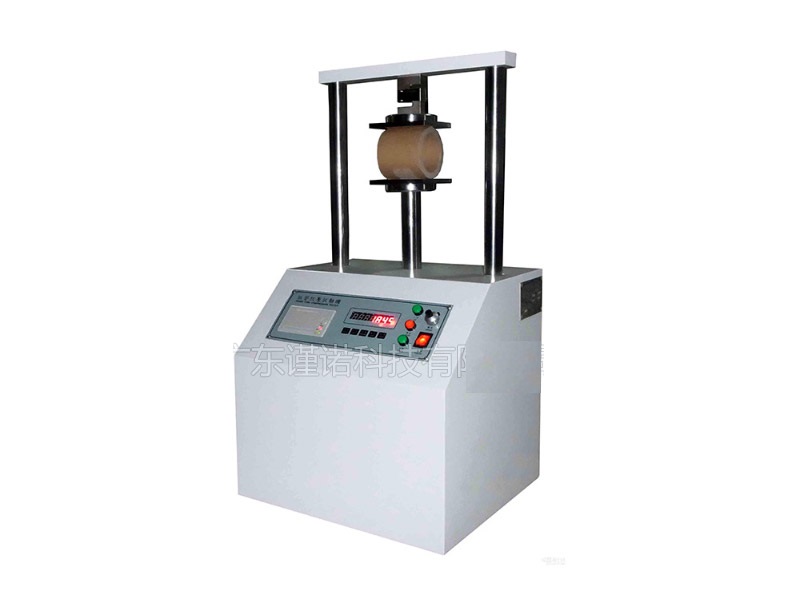

Jinuosh L-ZG001 Paper Tube Compression Testing Machine (≤2000, 5000N, 1 KN)

Pressing plate area: 100mm, 150mm, 300mm, 600mm (optional)

Upper and lower pressing plate distance: 120mm, 200mm, 500mm, 700mm (optional)

Measurement range: ≤2000 N, ≤5000N, ≤5000N, ≤1 KN (optional)

Compression speed: 0 ~ 85mm /min (adjustable speed)

Parallelism of upper and lower pressing plate: ≤ 1mm

Measurement accuracy: ≤± 1%

Displacement accuracy: ≤1 mm

Printing machine: thermal printer, only thermal printing paper, easy to replace, long life, high speed and silent printing.

Machine size: 430×400×600mm

Machine weight: 48KG-80KG

Power supply: 1∮ AC 220V 50/60 Hz

Datasheet
