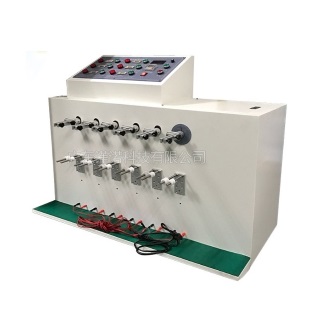

Jinuosh L-XC360 360 Degree Wire Rod Swing Test Machine (10-360°, 5-60times/min)

Power supply: AC220V/50Hz:

Power: 120W

Test speed: 5-60 times/min adjustable

Bending angle: 10°-360° adjustable

Test station: 6 stations

Test fixture: 6

Station control and test: 6 or 1 plug lead test at the same time each time, each is independently controlled, counted and cleared

Test turn-on voltage: low voltage DC24V

Total bending times: 0-999999 can be preset

Reset the number of times: automatic and manual conversion function

Weight weight: 50g, 100g, 200g, 300g, 500g each 6 pieces total 30 pieces

Volume: 1200*600*950cm

Weight: about 140kg

Speed display: LED digital display

Speed control: stepless speed regulation

The main configuration of the 360-degree wire swing test machine

- Host: 1

- Weights: 30

- Conduction wire: 6

- Power cord: 1

- Tool box: 1

- Instruction: 1 copy

Datasheet
