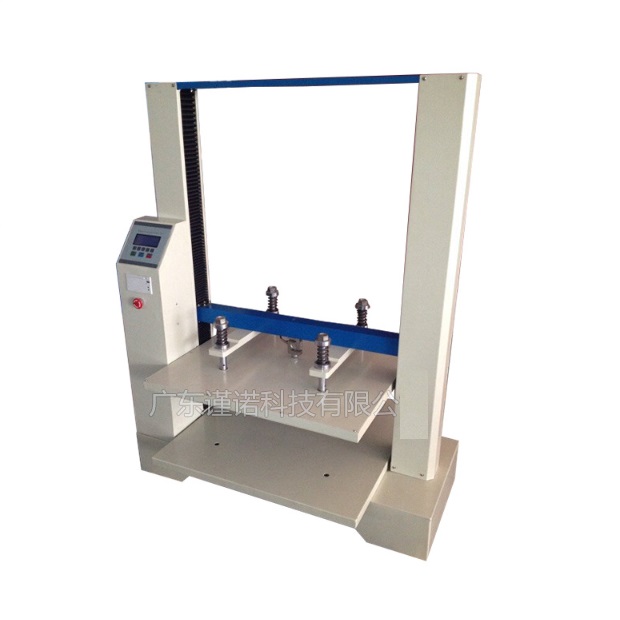

Jinuosh L-PTB001 Microcomputer Carton Compressive Testing Machine (0~ 500, 1000, 2000kg)

Test space: 600×600×800 mm (other optional specifications 800x800; 1000 x1000; 1200 x; 1500 x1500)

Capacity: 0~ 500kg, 1000 kg, 2000kg optional

Control mode: microcomputer control

Single bit: Kgf, G, N, kN, LBF (switchable)

Degree of resolution: 1/ 250,000

Precision: ≤± 1%

Resolution: 1 N

Compression speed standard: 10±3 mm/min

Transmission mechanism: motor driven arc ball screw

Printing function: serial number, peak value, average value, can be remembered

Stop mode: upper and lower limit safety setting, emergency stop key, program force and time setting, test piece failure detection

Printing machine: thermal printer, only thermal printing paper, easy to replace, long life, high speed and silent printing

Machine weight (approx.) : 580 KG

Electric source: 1∮ AC 220V 50/60 Hz
