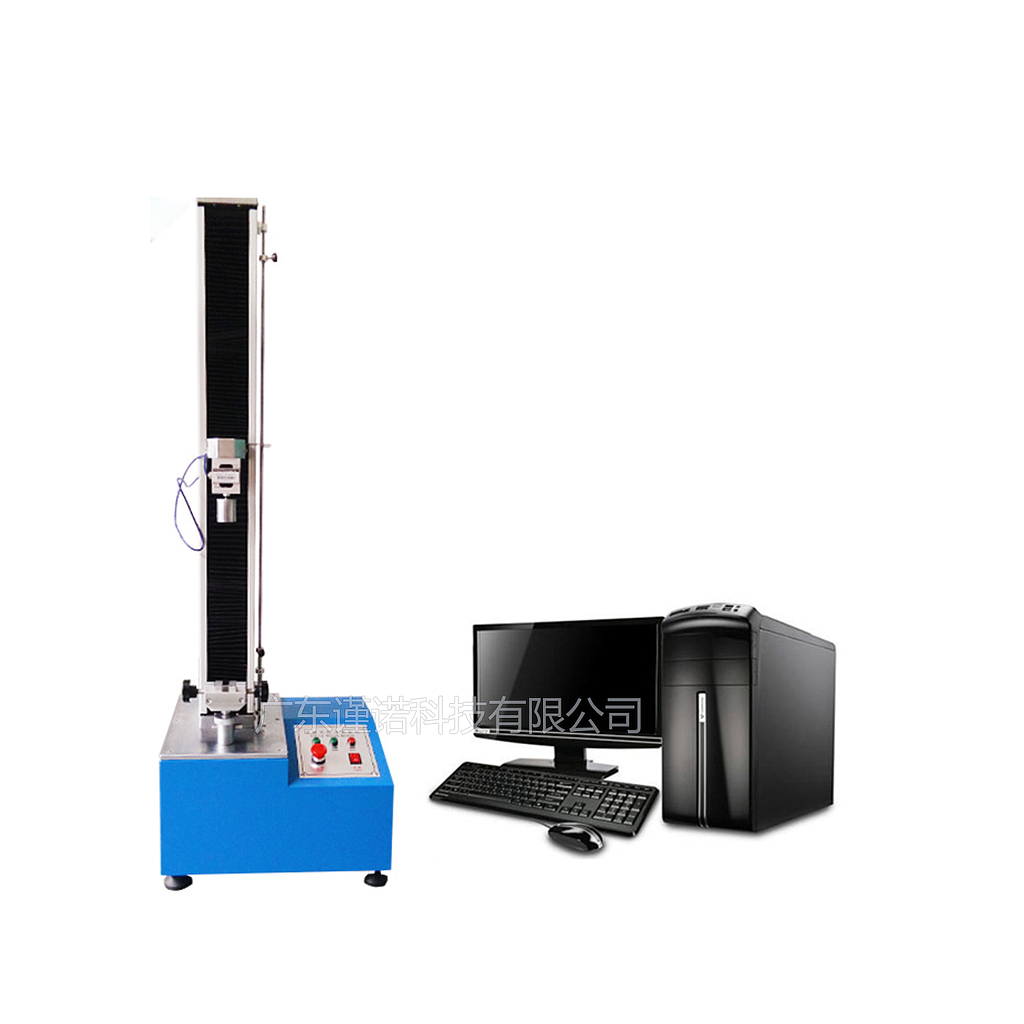

Jinuosh L-L001 Computer Servo Tensile Testing Machine (2~200kg)

Accuracy level: 0.5

Effective measuring force range: 0.4% ~ 100%

Force measurement accuracy: ±0.5% of the indicated value

Resolution: the maximum load is 1/± 25,000 yards, the inside and outside are not classified, and the whole resolution is unchanged

Effective test width: 150mm

Effective drawing space: 650mm/800mm/1000mm

Test speed range: 0.5 ~ 500mm/min

Displacement measurement accuracy: within ± 0.5% of the indicated value

Test bench safety device: electronic limit protection

Test bench return function: manual or automatic selection, automatic or manual return to the initial test position after the test

Overload protection: when the maximum load exceeds 10%, the machine will be automatically protected

Fixture configuration: One set of fixtures

Host size: 420×350×1520mm

Motor: 220V±10% 0.2kW /0.4KW imported servo motor

Main engine weight: about 50 Kg

Optional capacity: 2,5,10,20,50,100,200 kg, maximum 200kg

Basic configuration

One monitor and one host

One computer

One set of standard fixtures
