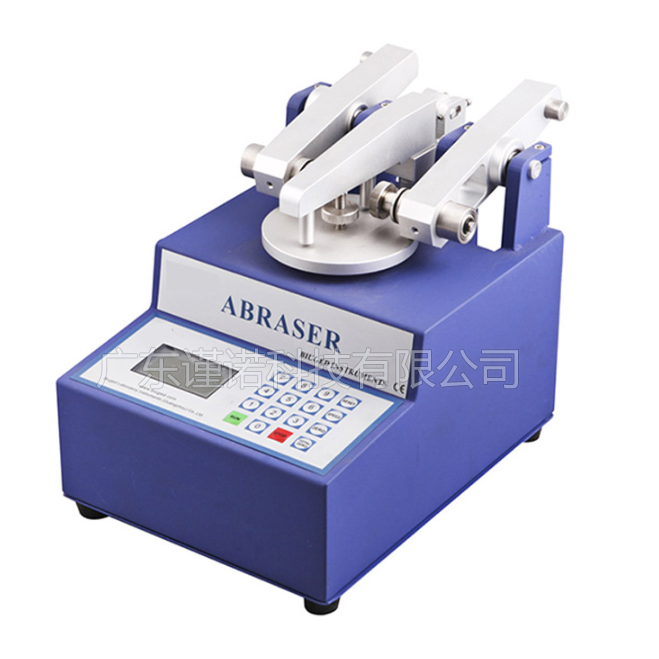

Jinuosh L-JM-V Paint Film Abrasion Tester (60rpm)

Working disc speed: 60 +/- 2 RPM

Sample glass wafer: 100*8*3mm

Motor power: 25W 220V 50HZ

Rubber grinding wheel: 50*12mm(outside diameter * thickness), 100#, 120#

Display, counting window: 9999 four digits

Main configuration of paint film abrasion tester

1 main engine (abrasion tester)

One auxiliary machine (grinding machine)

1 vacuum cleaner

Attachment:

1. Vacuum cleaner interface 1

2. Loading weights:

Weight: 250g, 500g, 750g

Grinding wheel balance weight: 20g (pin shaft, installed), 20g, 10g, 5g, 2g, 1g

The above two configurations are 16 in total

3. 2 power cables

4. Rubber grinding wheel 100# 120# 4 each

5. Round glass (test plate) 5 pieces

6. One copy of operation instruction

Datasheet
