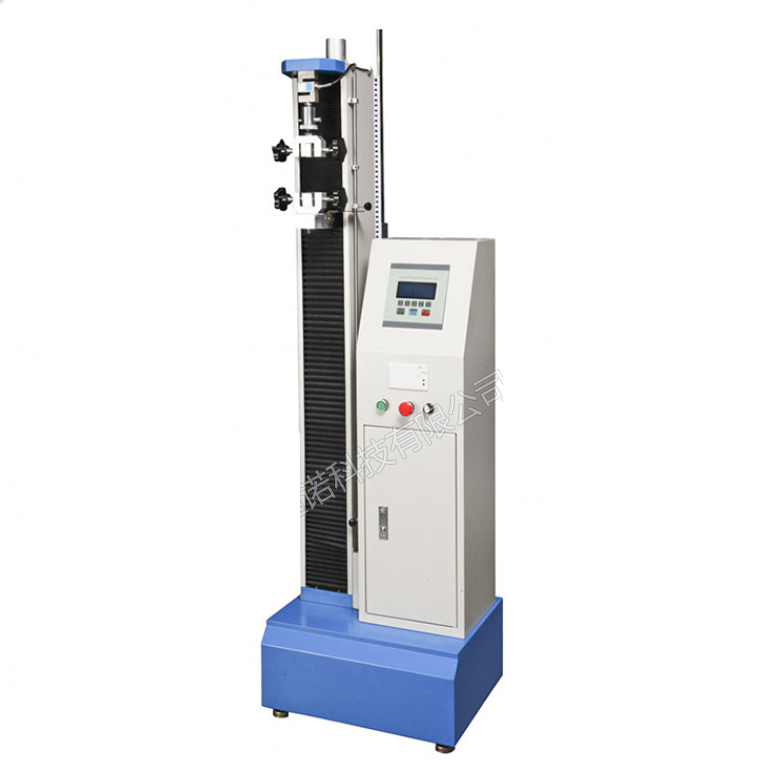

Jinuosh L-DZ05 Microcomputer Tensile Testing Machine (5,10,20,50,100,200,500kg)

Capacity selection: 5,10,20,50,100,200,500 kg

Force measurement accuracy: within ± 1% of the indicated value

Display mode: LCD Chinese display, film touch key

Unit switch: Kg, lb, N

Data sampling frequency: 200times/ SEC

Resolution of the testing machine: the maximum load is 1/± 25,000 yards, the inside and outside are not classified, and the whole resolution is unchanged

Load sensors: Basic configuration: pull and pressure sensors (maximum load)

Effective test width: 150mm

Effective stretch space: 1200mm

Test speed range: 50-300mm/min stepless speed regulation and 5-gear constant speed (special test speed can be customized according to customer requirements)

Displacement measurement accuracy: within ± 1% of the indicated value

Breakpoint ratio setting: 0 ~ 99%, users can set the appropriate break down time according to different materials

Test bench safety device: up and down travel limit device

Overload protection: when the maximum load exceeds 10%, the machine will be automatically protected

Fixture configuration: One set of stretching fixtures

Host size: 550×400×1820mm

Main engine weight: about 100kg

Power supply: 220V/50Hz
