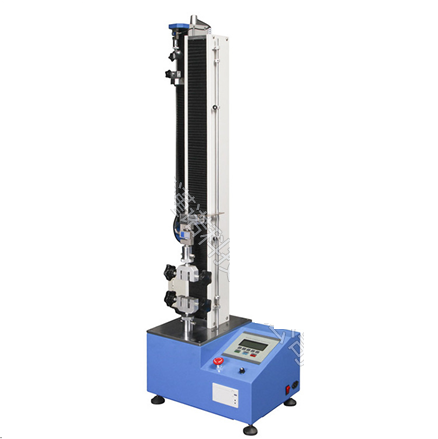

Jinuosh L-DZ02 Electronic Tensile Testing Machine (2~500kg)

Capacity: 2,5,10,20,50,100,200 kg, 500 kg

Force measurement accuracy: ± 1% of the indicated value

Display mode: LCD display in Chinese, film touch key (display force value and displacement parameter)

Unit switch: Kg, lb, N

Data sampling frequency: 200times/ SEC

Resolution of testing machine: the maximum load is 1/± 25,000 yards, the inside and outside are not classified, and the whole resolution is unchanged

Load sensors: Basic configuration: Pull and pressure sensors (maximum load)

Effective test width: 150mm

Effective drawing space: 650mm/800mm/1000mm

Test speed range: 50-300mm/min stepless speed regulation and 5-gear constant speed (special test speed can be customized according to customer requirements)

Displacement measurement accuracy: within ± 0.5% of the indicated value

Breakpoint ratio setting: 0 ~ 99%, users can set the appropriate break down time according to different materials

Test bench safety device: up and down travel limit device

Overload protection: when the maximum load exceeds 10%, the machine will be protected automatically

Fixture configuration: One set of drawing fixture

Host size: 450×500×1400mm

Main engine weight: about 60 Kg

Power supply: 220 v / 50 hz

Basic configuration

One host for each host

One set of standard fixtures
