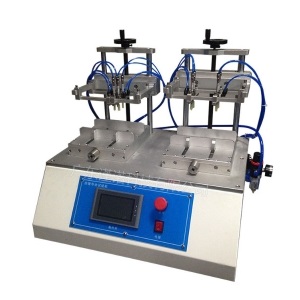

Jinuosh L-6900 Pneumatic Key Life Testing Machine (10~50mm, 10~60times/min)

Test station: Two samples can be tested at the same time, each of which can do six buttons, can be set to 1-2-3-4-5-6 cycle test

Control mode: touch screen setting input direct action, simple and convenient action

Action mode: the cylinder drives the probe to move up and down

Test speed: 10~60 times/min, manually adjustable

Test thickness: 10~50mm

Clamping fixture: clamping both sides of the lower cover

Height adjustment: manual and direct adjustment

Power supply: 220V

Weight: about 55kg
