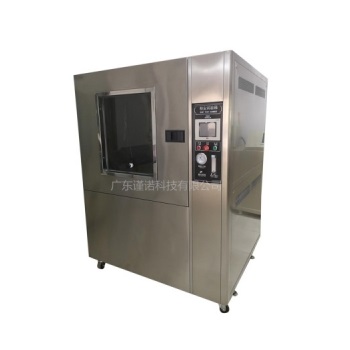

Jinuosh H-VYD800 Sand and Dust Test Chamber (RT~70℃, 512L)

Studio size (L×W×H): 800×800×800 mm

Dimensions (W×D×H): 1300x1200x1800 mm

Volume (L): 512L

Temperature range: room temperature~70℃, adjustable

The amount of talc powder 2kg/m3

Pressure drop: 2kPa (20mbar)

Material: Both the inner and outer tanks are made of SUS304 high-grade stainless steel plate

Controller: Controller adopts programmable controller (this controller has the following various arbitrary setting control functions)

- Dust blowing time (stop, blowing h/m/s adjustable)

- Cycle period: arbitrarily adjustable

- Preset test time: 0s~999h99m99s, arbitrarily adjustable

- Power on: one off and one off

Metal screen size: nominal wire diameter 50µm, nominal distance between wires 75µm (dust size")

Hair dryer: all-plastic centrifugal fan

Specimen power socket: dustproof socket
