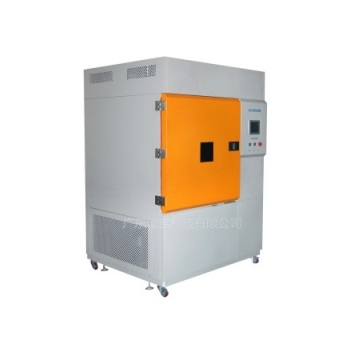

Jinuosh H-VXD225 Xenon Lamp Weathering Test Box (RT~80℃, 50~90%RH)

Studio size D×W×H(mm): 600×750×500

Dimensions D×W×H(mm): To be determined

Temperature range: RT+10℃~80℃ (adjustable)

Humidity range: 50~90%RH (adjustable)

Rain time: 0~9999 minutes (adjustable)

Rain cycle: 1~240 minutes, adjustable interval (break)

Wavelength range: 300nm ~ 800nm

Total power of xenon lamp: 6KW (lifetime: 800~1000 hours)

Range of accuracy:

Setting accuracy: temperature ±0.1℃, humidity ±1% RH

Indication accuracy: temperature ±0.1℃, humidity ±1%RH

Temperature and humidity sensor: platinum resistance PT100Ω/MV

Heating system: fully independent system, nickel-chromium alloy electric heating heater

Datasheet
