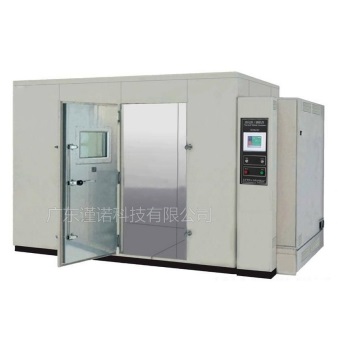

Jinuosh H-VH400 Walk-in High Temperature Aging Room (RT~60℃)

Standard volume of studio: 4, 5, 6, 8……25, 50, 100m³

Temperature range: RT+5℃-->60℃(RT+5℃-->80℃)

Temperature fluctuation: ±0.5℃

Temperature deviation: ±2℃

Temperature uniformity: ±3℃

Heating time: 1~2.5℃/min

Controller : Touch screen/LCD button type optional

Safety protection device; circulating fan overload, reverse phase, phase loss, temperature upper limit, leakage protection, etc.

Inner box material: SUS304# stainless steel or color steel optional

Outer box material: color steel

Insulation material: high-density polyurethane PU foam or polyethylene foam

Library body base: 6# channel steel national standard angle iron steel plate sprayed

The load-bearing capacity of the library body: 500kg/m²

Power supply: 380V 50Hz three-phase five-wire system
