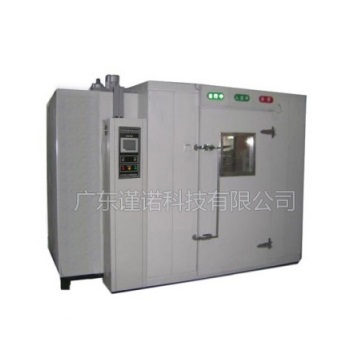

Jinuosh H-VH300 Walk-in Constant Temperature and Humidity Room (-65~85℃, 20~98%R.H)

Standard volume of working room: 2, 3, 4, 5……25, 30, 40 m3

Upper temperature limit: 85℃

Lower temperature limit: -65℃

Temperature and humidity deviation: ±2℃, ±3%R.H

Temperature and humidity fluctuation: ±0.5℃, ±1.0%R.H

Temperature and humidity uniformity: ±3℃, ±5%R.H

Humidity range: 20%~98%R.H

Heating time: 1 ~2.5℃/min

Cooling time: 0.7~1.5℃/min

Cooling method: water cooling

Refrigeration compressor: Taikang fully enclosed or Bitzer semi-hermetic compressor unit

Controller: LCD touch screen controller

Safety protection device: compressor overpressure, overload, overheating, upper temperature limit, humidifier dry burning alarm, etc.

Material: library board assembly / inner and outer box SUS 304# stainless steel welding

Power Source: 380V 50Hz three-phase five-wire system

Datasheet
