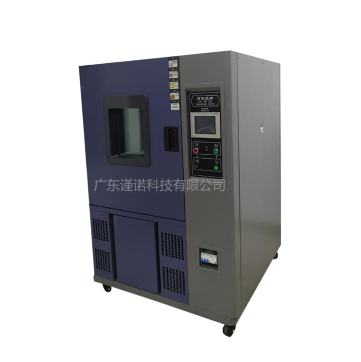

Jinuosh H-GD1000 High and Low Temperature Test Chamber (touch screen) (-70~150℃, 1000L)

Inner volume (L): 1000L

Inner box size WxHxD(cm): 100x100x100

Outer box size WxHxD(cm): 150x190x165

Temperature range: R:-20℃~+150℃; L:-40℃~+150℃; S:-70℃~+150℃

Temperature uniformity: ±1℃

Temperature fluctuation: ±2℃

Heating and cooling rate: heating up 2.0~4.0℃/min; cooling down 0.7~1.0℃/min (can be customized according to customer requirements)

Heater: scale stainless steel heater

Fan: centrifugal fan

Centrifugal fan: single-stage refrigeration/two-stage refrigeration

Cooling method: air cooling

Refrigeration compressor: fully enclosed compressor imported from France Taikang

Refrigerant: environmentally friendly refrigerant R404 + R23

Operation interface: LCD touch screen display

Resolution: Temperature: 0.01℃;

Control method: PID control method

Inner box material: SUS #304 stainless steel

Outer box material: first-class steel plate electrostatic spray

Power source: AC220V/380V
