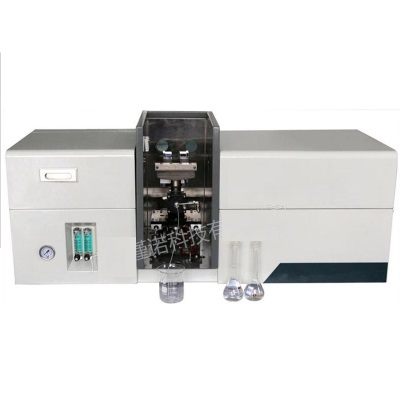

Jinuosh G-Z1000 Atomic Absorption Spectrometer (185~910nm)

Optical system:

Wavelength range: Automatic adjustment from 185nm to 910nm

The spectral bandwidth: 0.1, 0.2, 0.4, 1.0, 2.0nm

Wavelength accuracy: ±0.10nm

Wavelength repeatability: 0.05nm

Baseline drift: Static 0.002a /30min dynamic 0.006a /30min

The detector: Photomultiplier tube with wide spectral range

Light source system:

Lamp holder: 3 lamp holder

Lamp power supply mode: 400Hz square pulse

Modulation range: 2 -- 10mA average current

Atomization system:

Flame analysis method

Detection limit (Cu): 0.003 mu g/ml

The burner: 100mm All titanium burner

Precision: RSD≤0.5%

Detection limit: (Cd)≤4pg

Hydride generator atomic absorption method

Instrument parameters:

The power supply: AC 220V/50HZ

Power: 150VA

Instrument net weight: 55kg

Instruments and gross weight: 80kg

Instrument volume: 1110mm (horizontal) × 400mm (depth) × 500mm (height)

The packing volume: 1350mm (horizontal) × 600mm (depth) × 850mm (height)

Operating environment temperature: 10~35℃

Working environment humidity: ≤80%
