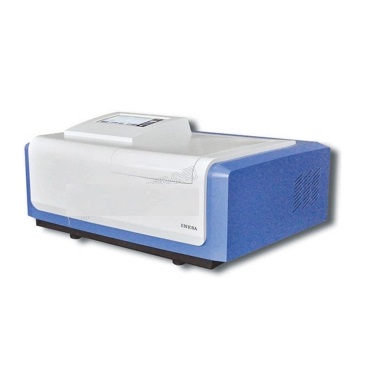

Jinuosh G-L6 UV-visible Spectrophotometer (190~1100 nm)

Wavelength range: 190 nm~1100 nm

Maximum allowable wavelength error: ±0.5 nm

Wavelength repeatability: ≤0.2 nm

Spectral bandwidth: 2 nm

Stray light: ≤0.036%(T)(measured at 220 nm for NaI)(measured at 360 nm for NaNO2)

Transmission range: 0.0%(T)~200.0%(T)

Absorbance range: -0.301(A)~4.000(A)

Maximum allowable transmittance error: ±0.3%(T)

Drift: ≤0.0009 A/0.5h (250 nm and 500 nm after boot 2)

Transmission specific gravity renaturation: ≤0.15%(T)

Baseline flatness: ±0.002 A (200 nm~1090 nm only for S series

Noise: 100%(T) Noise ≤0.15%(T)0%(T) Noise :0.10%(T)

Scan speed: fast, medium, slow

Temperature: 5℃~35℃

Ambient humidity: ≤85 per cent

Power supply voltage: AC220V±22 V 50HzAC220V±1 Hz

Rated power: 200 W
