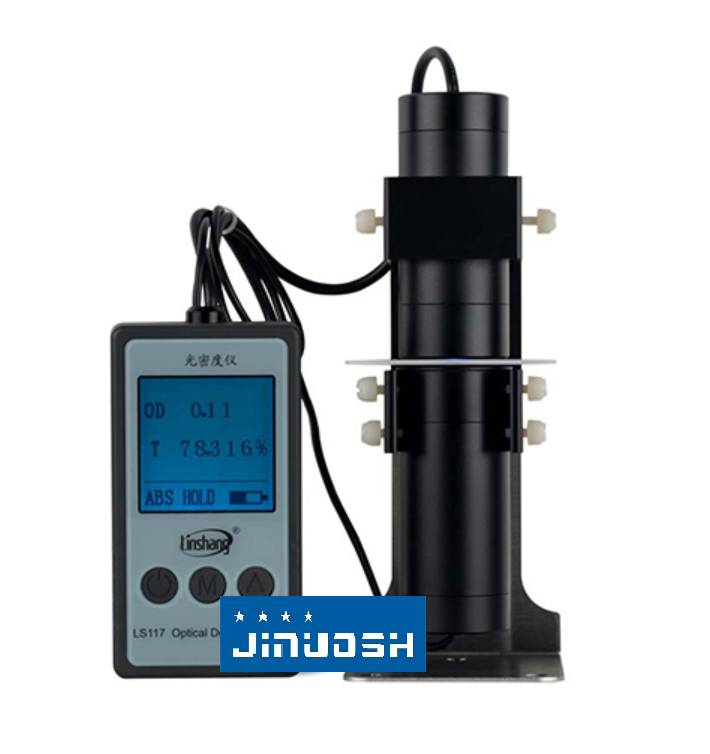

Jinuosh G-JN-01 Transmission Density Tester (0.00~6.00OD)

External dimension of the instrument: length 130mm * width 70mm * height 28mm

Instrument weight: about 500g (without batteries)

Light hole size: 2mm

Optical density measurement range: 0.00 OD -- 6.00 OD

Measuring range of dot area rate: 0 -- 100%

Optical density resolution: 0.01 OD

Measurement accuracy: ±0.02 (0 -- 2.00 OD), ±2% (2.00 -- 6.00 OD)

Transmittance resolution: 0.0005%

Measurement accuracy of transmittance: ±1% (0% -- 50%), ±2% (50% -- 100%)

Light source: ANSI/ISO visual standard

Power supply: 4*AAA alkaline dry battery

Datasheet
