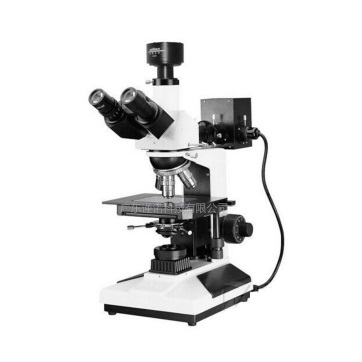

Jinuosh G-D20 Metallographic Microscope (75x50mm, 5~40X)

Trinocular head: Tilt 30°, can rotate 360° (built-in analyzer can be switched).

Objective: Long working distance plan achromatic objective lens 5X/0.12, 10X/0.25, 20X/0.45, 40X/0.60 (spring).

Converter: Four-hole converter, inward ball positioning

Eyepiece: 10X wide-angle eyepiece, focal length 25mm, field of view 18mm.

Stage: 180mm X 145mm, moving range: 75mm X 50mm.

Condenser: Condenser N. A. 1.25, with aperture diaphragm, adjustable up and down.

Color filter: Blue, green, frosted glass

Lighting system: Illuminated by 6V 20W halogen lamp with adjustable brightness.

CCD: 13 million pixels with measurement software

Monitor: 21.5 inch ViewSonic/Philips
