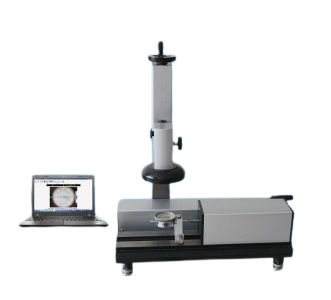

Jinuosh FT-50G Dial Indicator Comprehensive Tester (0-52 mm)

Measuring range: 0-52 mm

Display resolution: 0.1µm, 0.01µm adjustable

Computer interface: Direct USB2.0 full-speed interface (eliminate RS-232 interface)

Repeatability: ≤0.1µm

Volume: 480x220x450(mm)

CNC minimum step: 0.1µm

Weight: 20kg

Automatic meter reading accuracy: Dial indicator 1/32 division, dial indicator 1/64 division

Power supply: AC220V±10%/50Hz

Automatic detection speed: Average 0.3 seconds/point adjustable

Working environment: Temperature (20±5)℃, relative humidity (50~70)%RH

Indication error: The error within any 2mm range is ≤0.7µm, the error within any 10mm range is ≤0.8µm, and the overall error is ≤1.0µm
